Power Transmission > Bearings > Plastic Bearing Inserts

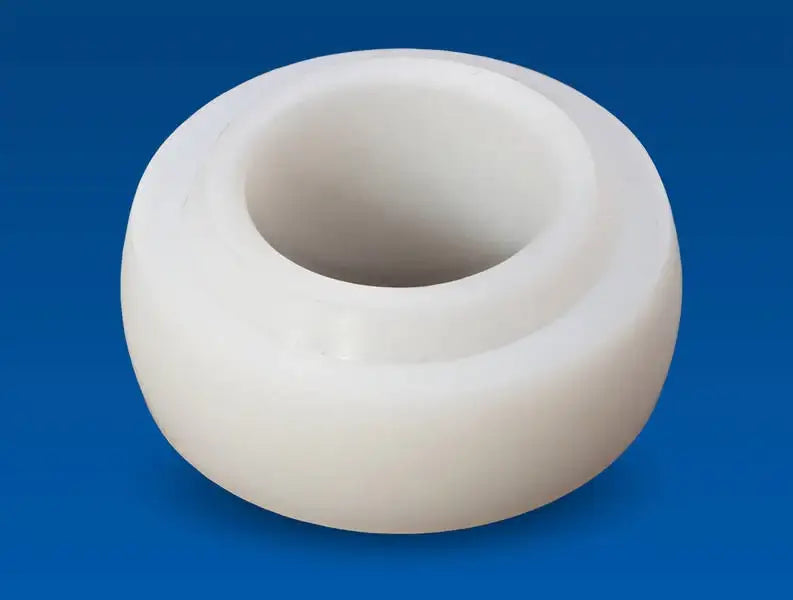

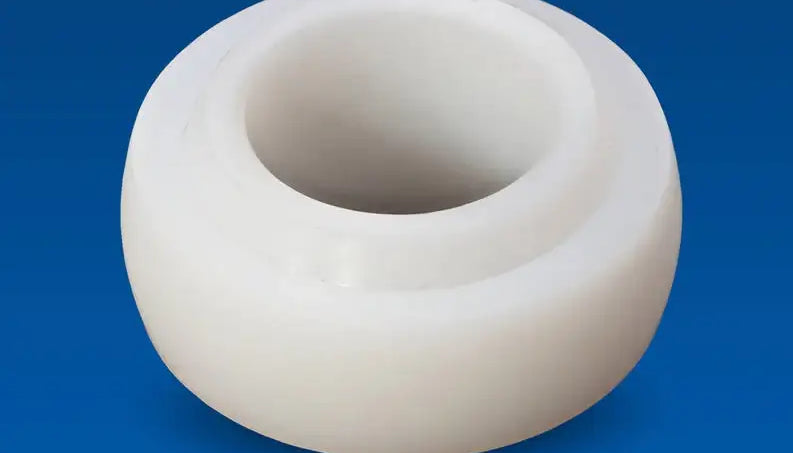

1-9/16" Plastic Bearing Insert | UHMW 1-9/16" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 7735-BRG-PI-1-916
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
1-9/16" Plastic Bearing Insert | UHMW 1-9/16" Insert Bearing Features
1-9/16" Plastic Bearing Insert | UHMW 1-9/16" Insert Bearing Specifications
This 1-9/16" plastic insert bearing is manufactured out of high-quality UHMW and directly interchanges with steel and stainless steel insert bearings. Plastic insert bearings are designed to operate in applications exposed to harsh conditions such as moisture, chemical, corrosion, abrasives, and more. The 1-9/16" insert bearing is self-lubricating and is USDA and FDA approved. The standard UHMW 1-9/16" bearing insert is capable of operating in temperatures up to 200-degrees Fahrenheit; we also supply this bearing in a special material that is capable of handling temperatures up to 600-degrees Fahrenheit. Because of its design, this bearing is also self-aligning. This means that no specific equipment or component modifications need to be made. For additional information or to get a quote on our 1-9/16" plastic insert bearing, contact our customer support team, and we will be happy to assist you!
1-9/16" Plastic Insert Bearing
- Part #: PI-1-916
- Bore: 1-9/16"
- Outside Diameter (A): 3.150"
- Overall Width (B): 1.732"
- Max Speed (RPM): 100
- Max Radial Load (LBS): 1066
- Part #: PI-1-916
- Bore: 1-9/16"
- Outside Diameter (A): 3.150"
- Overall Width (B): 1.732"
- Max Speed (RPM): 100
- Max Radial Load (LBS): 1066
