76.2 K3 Marsh Buggy Chain | Marsh Buggy Track Chain

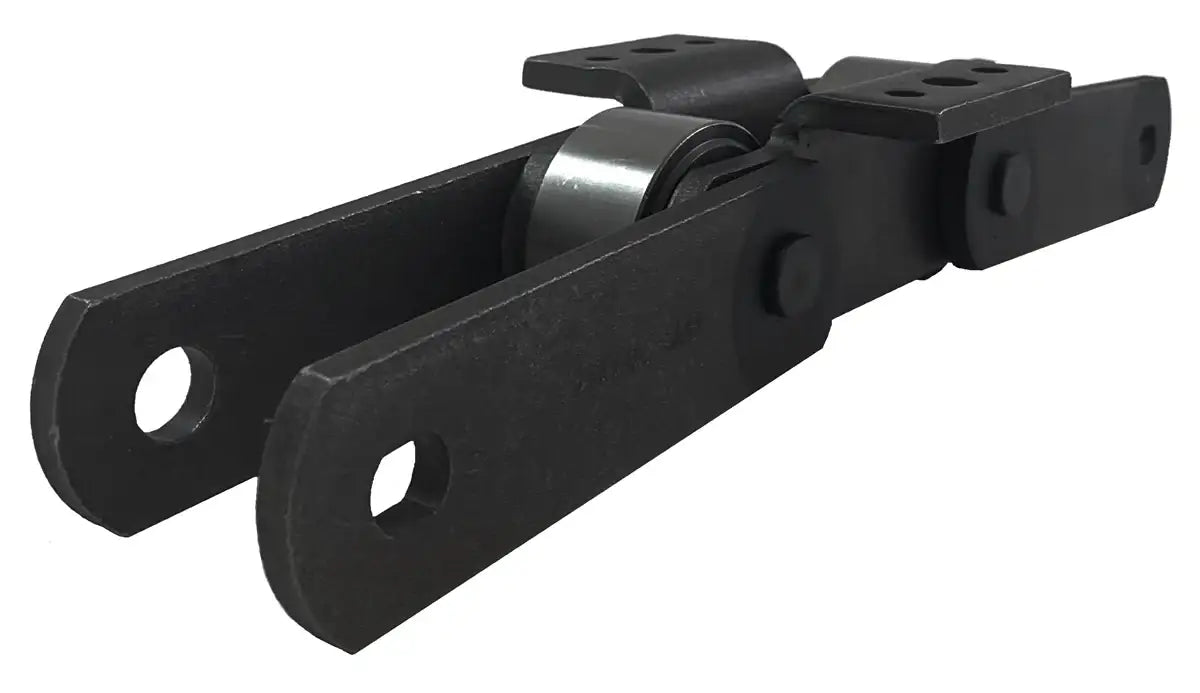

76.2 K3 marsh buggy chain is found in marsh buggy excavating and transporting equipment all around the world in various wetlands and marshes. The chain is designed with extended tabs on the outer links for slats to attach to, the assembly creates what is called a track chain and is similar to the common tank track design. Our 76.2 K3 marsh buggy chain is manufactured utilizing premium quality steel that has been undergone numerous manufacturing techniques and processes to ensure maximum life and durability of the chain. We also supply 76.2 K3 pitch marsh buggy chain sprockets as well as extra replacement parts. For More information or to get a quote on 76.2 K3 pitch marsh buggy chain please contact us and we will be happy to assist you!

76.2 K3 Marsh Buggy Chain Dimensions

• Chain Size: 76.2 K3
• Dimension (F): 77.6mm
• Dimension (W): 101.6mm
• Dimension (N): 35mm
• Dimension (E): 57.5mm
• Dimension (d4): 9.8mm
• Dimension (d5): 9.8mm
• Dimension (H): 33.2mm
• Dimension (P): 76.2mm
• Dimension (b1): 25.5mm
• Dimension (D): 50.8mm
• Dimension (d): 11.1mm
• Dimension (L1): 28.9mm
• Dimension (L2): 32.9mm
• Dimension (h): 38.1mm
• Dimension (t/ T): 6.4mm
• Weight: 12.4 kG/ M
