Mounted XL Timing Belt Guide | Timing Belt Guide
Note:
Custom Cut to Length Chain Also Available
SKU: 7539-170141-BELT-GUIDE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Mounted XL Timing Belt Guide | Timing Belt Guide Features
Mounted XL Timing Belt Guide | Timing Belt Guide Specifications

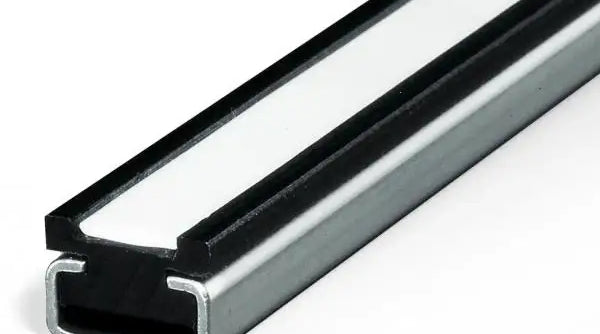

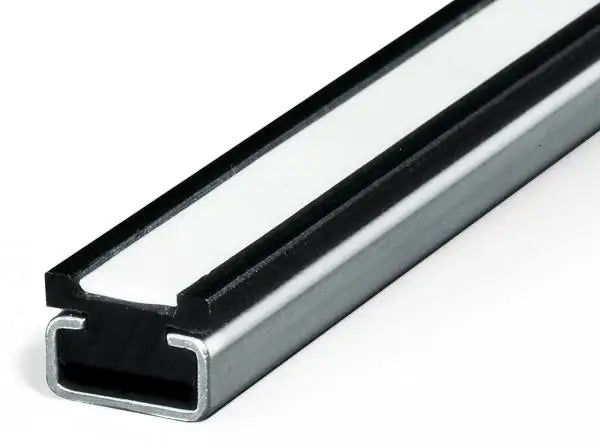

Our UHMW mounted XL timing belt guide is precision manufactured and engineered to increase the working life of XL timing belts while also reducing noise and friction. Mounted XL timing guides are supplied with galvanized or stainless steel mounting channel; the channel provides support for the guide and easy mounting into current systems. Standard timing belt guide and channel lengths are 10ft and 20ft, but specific lengths can be supplied upon request. We also supply the timing belt guide itself in alternate grades of UHMW to broaden the application usability.
Timing Belt Guide UHMW Options
- Black Repro UHMW - Lower Material Cost
- Oil-Filled UHMW - Higher Speed Rating
- Green Repro UHMW - European DIN Standard
- Static-Dissipative UHMW - Conductive
- High-Temp UHMW (HT) - Operates Up To 275°F
Mounted XL Timing Belt Guide Dimensions
- Part #: 170141
- Belt Type: XL
- Belt Size (Pitch X Width): 1/5" X 3/8"
- Mounting Channel Type: C3
- Mounting Channel Material: Galvanized or Stainless Steel
- Dimension (A): 0.63"
- Dimension (B): 0.79"
- Dimension (C): 0.41"
- Dimension (D): 0.06"
- Part #: 170141
- Belt Type: XL
- Belt Size (Pitch X Width): 1/5" X 3/8"
- Mounting Channel Type: C3
- Mounting Channel Material: Galvanized or Stainless Steel
- Dimension (A): 0.63"
- Dimension (B): 0.79"
- Dimension (C): 0.41"
- Dimension (D): 0.06"
