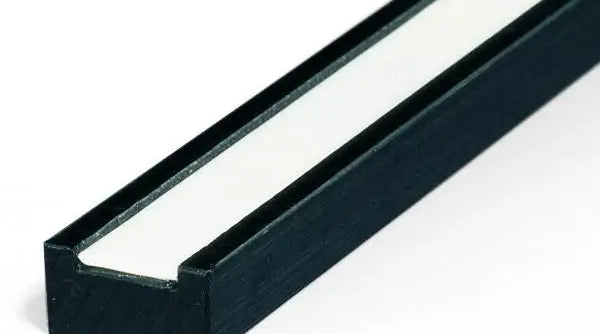

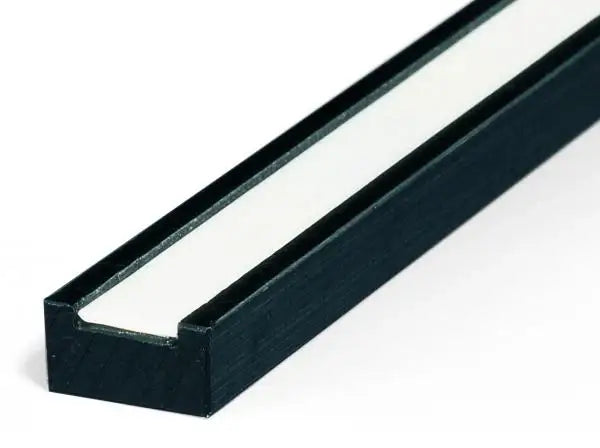

H Timing Belt Guide | 170134 Timing Belt Guide
Note:
Custom Cut to Length Chain Also Available
SKU: 7539-170134-BELT-GUIDE-H
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
H Timing Belt Guide | 170134 Timing Belt Guide Features
H Timing Belt Guide | 170134 Timing Belt Guide Specifications
Our UHMW XL timing belt guide is precision manufactured and engineered to increase the working life of timing belts while also reducing noise and friction. Standard timing belt guide lengths are 10ft and 20ft, but specific lengths can be supplied upon request. We also supply XL timing belt guides in alternate grades of UHMW to broaden the application usability.
Timing Belt Guide UHMW Options
- Black Repro UHMW - Lower Material Cost
- Oil-Filled UHMW - Higher Speed Rating
- Green Repro UHMW - European DIN Standard
- Static-Dissipative UHMW - Conductive
- High-Temp UHMW (HT) - Operates Up To 275�F
XL Timing Belt Guide Dimensions
- Part #: 170134-H
- Belt Type: H
- Belt (Pitch X Width): 1/2" X 1"
- Dimension (A): 0.59"
- Dimension (B): 1.39"
- Dimension (C): 1.04"
- Dimension (D): 0.10"
- Part #: 170134-H
- Belt Type: H
- Belt (Pitch X Width): 1/2" X 1"
- Dimension (A): 0.59"
- Dimension (B): 1.39"
- Dimension (C): 1.04"
- Dimension (D): 0.10"
