50-10 Sugar Cane Harvester Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 7462-RC-P-50-10
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
50-10 Sugar Cane Harvester Chain Features
50-10 Sugar Cane Harvester Chain Specifications
50-10 sugar cane harvester chain is manufactured using premium quality steel alloys to precision tolerances. Each component is heat-treated and shot-peened for optimal wear-life and overall performance. We also supply sprockets for this chain and custom lengths upon request. For additional information or to get a quote on 50-10 sugar cane harvester chain contact our customer support team and we will be happy to assist you!

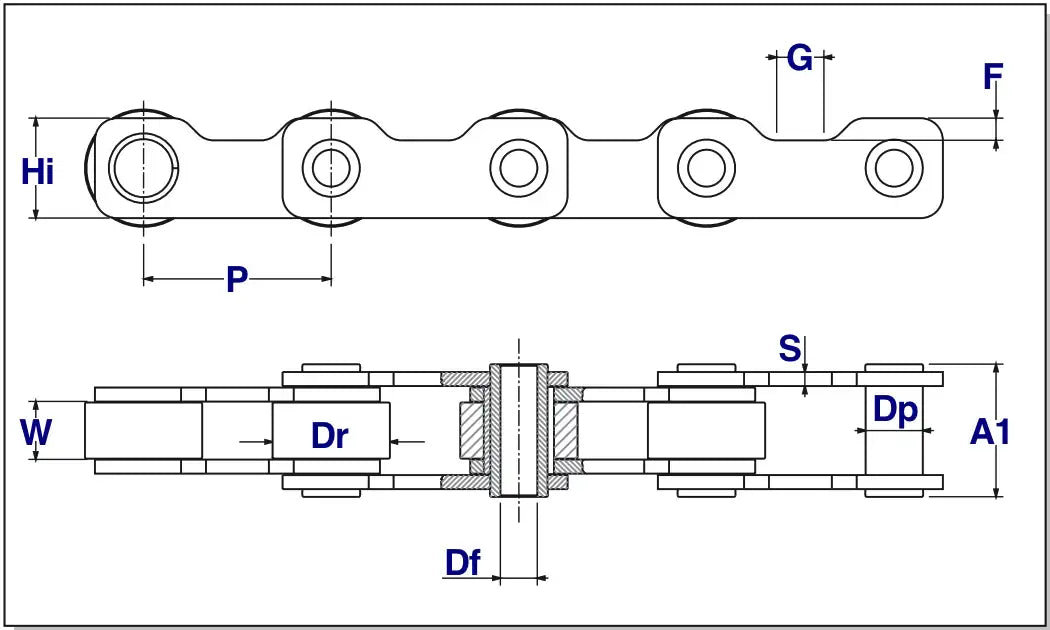

50-10 Chain Dimensions
- Chain Size: 50-10
- Pitch (P): 50.80mm
- Roller Diameter (Dr): 38.10mm
- Inside Width (W): 15.70mm
- Height (Hi): 27.2mm
- Plate Width (G): 16.00mm
- Plate Depth (F): 6.00mm
- Plate Thickness (s): 4.00mm
- Dimension (Dp): 14.75mm
- Dimension (Df): 10.30mm
- Dimension (A1): 38.80mm
- Working Surface: 367mm^2
- Average Ultimate Strength: 55.5 kN
- Weight: 4.58 kG/ m
- Chain Size: 50-10
- Pitch (P): 50.80mm
- Roller Diameter (Dr): 38.10mm
- Inside Width (W): 15.70mm
- Height (Hi): 27.2mm
- Plate Width (G): 16.00mm
- Plate Depth (F): 6.00mm
- Plate Thickness (s): 4.00mm
- Dimension (Dp): 14.75mm
- Dimension (Df): 10.30mm
- Dimension (A1): 38.80mm
- Working Surface: 367mm^2
- Average Ultimate Strength: 55.5 kN
- Weight: 4.58 kG/ m
