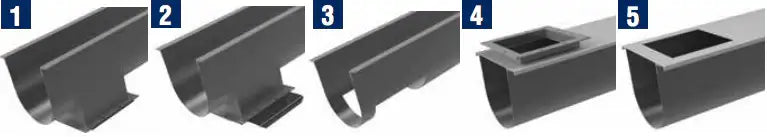

16" Screw Conveyor Discharge Spout Without Hand Slide | 342-0981
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-342-0981
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16" Screw Conveyor Discharge Spout Without Hand Slide | 342-0981 Features
16" Screw Conveyor Discharge Spout Without Hand Slide | 342-0981 Specifications
The 342-0981 16" screw conveyor discharge spout without hand slide is fitted to the conveyor trough or trough openings, it's made from high-strength 3/16" thick steel. We also supply spouts made to specific dimensions and configurations upon request, they can also be furnished out of special materials required by the application. For additional information or to get a quote on a 16" screw conveyor discharge spout without a hand slide contact our customer support team and we will be happy to assist you!
16" Discharge Spout Without Hand Slide Dimensions
- Part #: 342-0981
- Diameter of Conveyor: 16"
- Gauge of Steel: 3/16
- Weight: 38 LBS
- Dimension (A): 17"
- Dimension (B): 13-1/2"
- Dimension (C): 11-1/8"
- Dimension (G-H): 21-1/4"
- Dimension (J): 30-3/4"
- Dimension (K): 7/8"
- Dimension (L): 3-3/4"
- Dimension (M): 4"
- Dimension (N): 4"
- Dimension (P): 3/8"
- Size of Bolt (R): 2-1/2"
- Part #: 342-0981
- Diameter of Conveyor: 16"
- Gauge of Steel: 3/16
- Weight: 38 LBS
- Dimension (A): 17"
- Dimension (B): 13-1/2"
- Dimension (C): 11-1/8"
- Dimension (G-H): 21-1/4"
- Dimension (J): 30-3/4"
- Dimension (K): 7/8"
- Dimension (L): 3-3/4"
- Dimension (M): 4"
- Dimension (N): 4"
- Dimension (P): 3/8"
- Size of Bolt (R): 2-1/2"
