24" Screw Conveyor Supporting Feet
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-335-0774
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
24" Screw Conveyor Supporting Feet Features
24" Screw Conveyor Supporting Feet Specifications

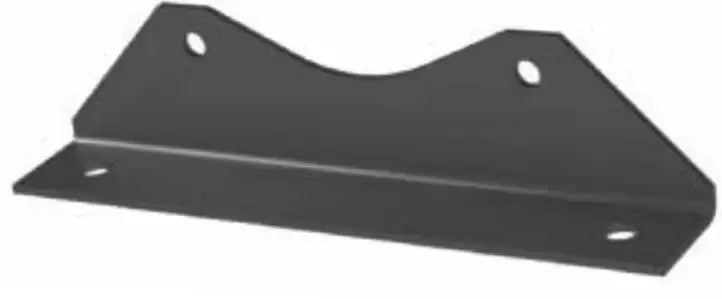

24" screw conveyor supporting feet are manufactured out of high-quality heavy-gauge steel and provide the means of aligning and fastening the trough to the floor or existing structure at the trough joints. With supporting feet, the trough end height is accurately maintained, and the feet permit the removal of a trough end without disturbing the entire unit. For additional information or to get a quote on 24" screw conveyor supporting feet, contact our customer service team, and we will be happy to assist you!
24" Screw Conveyor Supporting Feet Dimensions
- Part #: 335-0774
- Diameter of Conveyor: 24"
- Weight: 14.5LBS
- Dimension (E): 18-1/8"
- Dimension (F): 1/4"
- Dimension (G): 20"
- Dimension (H): 2-1/4"
- Dimension (J): 4"
- Dimension (L): 3/4"
- Part #: 335-0774
- Diameter of Conveyor: 24"
- Weight: 14.5LBS
- Dimension (E): 18-1/8"
- Dimension (F): 1/4"
- Dimension (G): 20"
- Dimension (H): 2-1/4"
- Dimension (J): 4"
- Dimension (L): 3/4"
