Power Transmission > Screw Conveyors & Parts > Screw Conveyor Seals
2-7/16" Split Seal Gland | Screw Conveyor Seal
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-271-0358
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
2-7/16" Split Seal Gland | Screw Conveyor Seal Features
2-7/16" Split Seal Gland | Screw Conveyor Seal Specifications

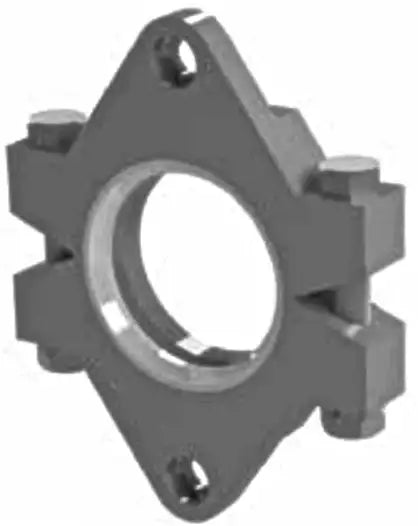

2-7/16" split seal gland is a screw conveyor seal that utilizes a twisted type of packing that prevents leakage of material being conveyed and to protect the material from the bearing lubricant. This type of seal also protects against moisture, dirt contamination, and other unwanted contents. Split seal gland seals are generally used on shelf type trough ends and are designed as a split assembly for easy install and repacking. For more information or to get a quote on 2-7/16" split seal glands contact our customer service team and we will be happy to assist you!
2-7/16" Split Seal Gland Dimensions
- Part #: 271-0358
- Shaft Size: 2-7/16"
- Dimension (B): 5"
- Dimension (C): 6-1/4"
- Dimension (D): 5/8"
- Dimension (E): 1-1/4"
- Dimension (F): 5/8"
- Weight (LBS): 6
- Part #: 271-0358
- Shaft Size: 2-7/16"
- Dimension (B): 5"
- Dimension (C): 6-1/4"
- Dimension (D): 5/8"
- Dimension (E): 1-1/4"
- Dimension (F): 5/8"
- Weight (LBS): 6
