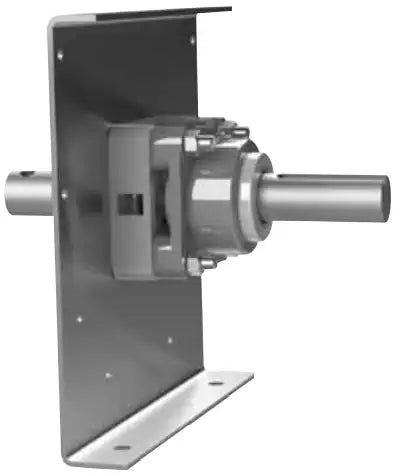

110 Trough End for 16" Conveyor and 3" CHEVRON Roller Bearing | Drive Shaft With Feet
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-240-0844
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
110 Trough End for 16" Conveyor and 3" CHEVRON Roller Bearing | Drive Shaft With Feet Features
110 Trough End for 16" Conveyor and 3" CHEVRON Roller Bearing | Drive Shaft With Feet Specifications
110 trough end for 16" conveyor and 3" CHEVRON roller bearing with a drive shaft and with feet is designed to handle medium to heavy thrust loads in either direction in any application. When starting up a screw conveyor, thrust is created in the direction opposite to the flow of material. If the thrust is not properly contained, it will wear on the hanger bearings, trough end, and screw. The Chevron bearing adequately handles these thrust loads and is recommended for screw conveyor applications rather than a self-aligning ball bearing. For more information or to get a quote on 240-0844 110 tough end for 16" conveyor and 3" CHEVRON roller bearing, contact our customer support team, and we will be happy to assist you!
110 trough end for 16" conveyor and 3" CHEVRON roller bearing Dimensions
- Part#: 242-0844
- Conveyor Diameter: 16"
- Shaft Size: 3"
- Dimension (C): 1-9/16"
- Dimension (K): 5/16"
- Dimension (B): 6"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 1"
- Dimension (G): 6-7/16"
- Dimension (H): 6-7/8"
- Dimension (J): 3/4"
- Keyseat Width: 3/4"
- Keyseat Depth: 3/8"
- Keyseat Length: 5-3/4"
- Weight: 131 LBS
- Part#: 242-0844
- Conveyor Diameter: 16"
- Shaft Size: 3"
- Dimension (C): 1-9/16"
- Dimension (K): 5/16"
- Dimension (B): 6"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 1"
- Dimension (G): 6-7/16"
- Dimension (H): 6-7/8"
- Dimension (J): 3/4"
- Keyseat Width: 3/4"
- Keyseat Depth: 3/8"
- Keyseat Length: 5-3/4"
- Weight: 131 LBS
