12" Screw Conveyor Hanger for 2" Shaft | Style 226 With Lube Pipe

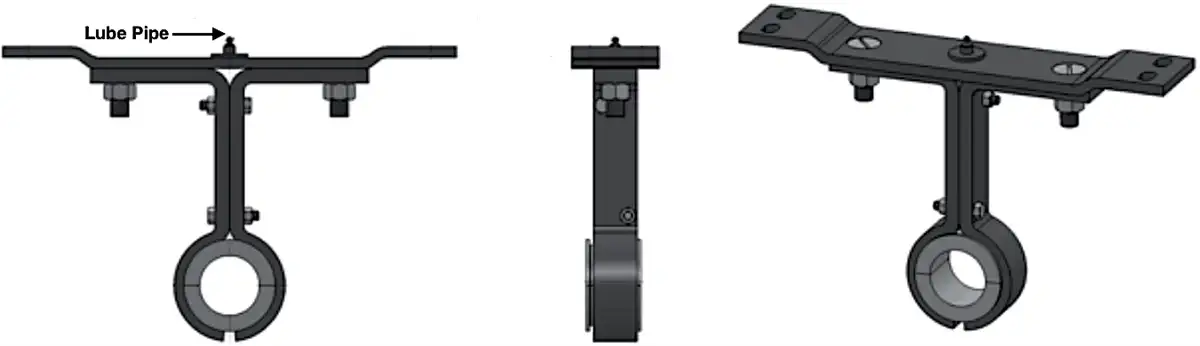

Style 226 12" screw conveyor hanger for 2" shaft is one of the most popular styles used due to an innovative design that offers fantastic screw support and the least possible obstruction to the flow of material, style 226 also mounts completely inside of the trough so it is suitable for dut-tight and weather-tight covers. This 175-2666 configuration does feature a lube pipe and is made for 12" diameter screw conveyors using a 2" diameter shaft. The style 226 hanger features wider top bars for greater stability when mounting across the flange joints of the trough. Standard bearing styles used include; Babbitt, Hard Iron, Arguto Wood, Bronze, and Nylon or Nylatron; also available on special order is Bronze Oilite, Gatke, Stellite, Teflon or practically any conceivable bearing material, style 226 also mounts completely inside of the trough so it is suitable for dust-tight and weather-tight covers. For additional information or to get pricing please contact our customer service team and we will be happy to assist you.

Style 226 12" Conveyor Hanger For 2" Shaft Dimensions

• Hanger Type: 226
• Part #: 175-2666
• Diameter of Conveyor: 12"
• Bearing Bore: 2"
• Weight: 14 LBS
• Bearing Length: 2"
• Dimension (A): 13"
• Dimension (B): 17-1/2"
• Dimension (C): 15-3/4"
• Dimension (D): 7-3/4"
• Dimension (E): 4"
• Dimension (F): 3/8"
• Dimension (G): 2-1/2"
• Dimension (H): 1/2"
• Dimension (J): 1-1/4"
• Dimension (K): 6-1/2"
