12" Screw Conveyor Hanger for 3" Shaft | Style 220 With Lube Pipe
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-175-1353
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12" Screw Conveyor Hanger for 3" Shaft | Style 220 With Lube Pipe Features
12" Screw Conveyor Hanger for 3" Shaft | Style 220 With Lube Pipe Specifications

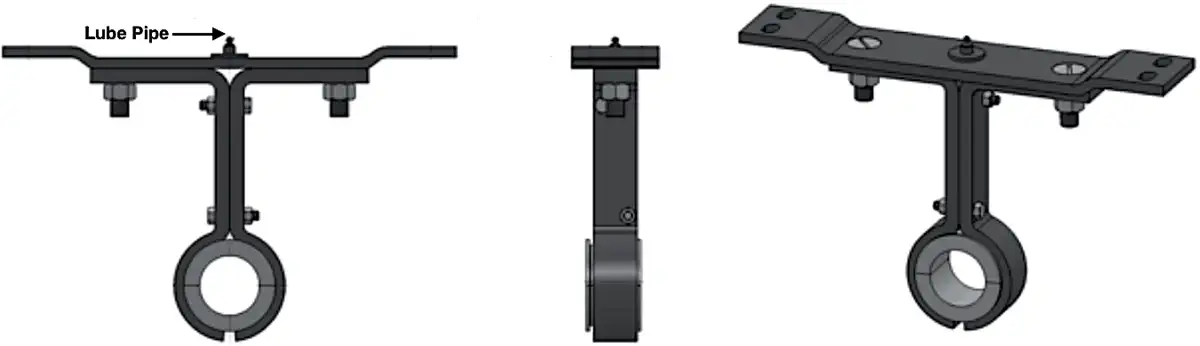

Style 220 12" screw conveyor hanger for 3" shaft is one of the most popular styles used due to an innovative design that offers fantastic screw support and the least possible obstruction to the flow of material. This 175-1353 configuration does feature a lube pipe and is made for 12" diameter screw conveyors using a 3" diameter shaft. The style 220 hanger features wider top bars for greater stability when mounting across the flange joints of the trough. Standard bearing styles used include; Babbitt, Hard Iron, Arguto
Wood, Bronze, and Nylon or Nylatron; also available
on special order is Bronze Oilite, Gatke, Stellite, Teflon
or practically any conceivable bearing material. For additional information or to get pricing please contact our customer service team and we will be happy to assist you.
Style 220 12" Conveyor Hanger For 3" Shaft Dimensions
- Hanger Type: 220
- Part #: 175-1353
- Diameter of Conveyor: 12"
- Bearing Bore: 3"
- Weight: 22 LBS
- Bearing Length: 3"
- Dimension (A): 13"
- Dimension (B): 17-1/2"
- Dimension (C): 15-3/4"
- Dimension (D): 7-3/4"
- Dimension (E): 4"
- Dimension (F): 3/8"
- Dimension (G): 2-1/2"
- Dimension (H): 1/2"
- Dimension (J): 1-1/4"
- Dimension (K): 6-1/2"
- Hanger Type: 220
- Part #: 175-1353
- Diameter of Conveyor: 12"
- Bearing Bore: 3"
- Weight: 22 LBS
- Bearing Length: 3"
- Dimension (A): 13"
- Dimension (B): 17-1/2"
- Dimension (C): 15-3/4"
- Dimension (D): 7-3/4"
- Dimension (E): 4"
- Dimension (F): 3/8"
- Dimension (G): 2-1/2"
- Dimension (H): 1/2"
- Dimension (J): 1-1/4"
- Dimension (K): 6-1/2"
