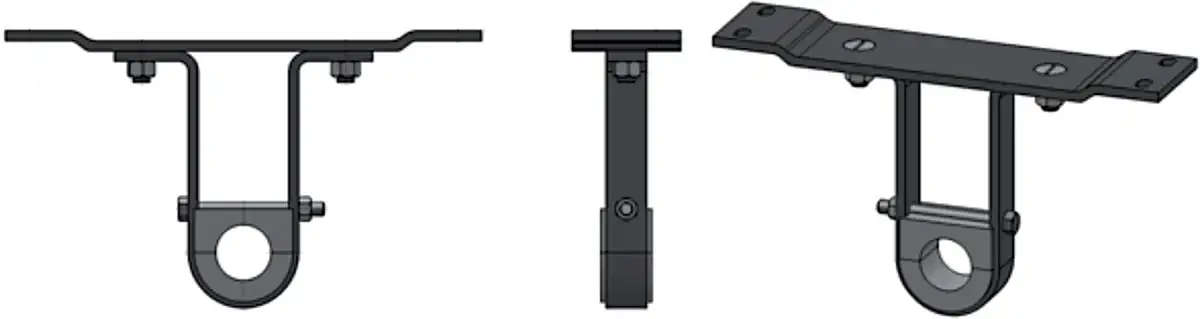

18" Screw Conveyor Hanger for 3-7/16" Shaft | Style 230 With Iron Bearing

Style 230 18" screw conveyor hanger for 3-7/16" shaft is designed for the most severe and abrasive screw conveyor applications. This 161-0989 configuration features a hard iron-bearing and is made for 18" diameter screw conveyors using a 3-7/16" diameter shaft. The style 230 hanger features wider top bars for greater stability when mounting across the trough's flange joints. Standard bearings used in these frames due to their application type is hard-iron; however, Arguto wood bearings are also readily available. For additional information or to get pricing, please contact our customer service team, and we will be happy to assist you.

Style 230 18" Conveyor Hanger For 3-7/16" Shaft Dimensions

• Hanger Type: 230
• Part #: 161-0989
• Diameter of Conveyor: 18"
• Bearing Bore: 3-7/16"
• Weight: 31 LBS
• Bearing Length: 4"
• Dimension (A): 19"
• Dimension (B): 24-1/2"
• Dimension (C): 22-1/4"
• Dimension (D): 12-1/8"
• Dimension (E): 5"
• Dimension (F): 1/2"
• Dimension (G): 3-1/2"
• Dimension (H): 5/8"
• Dimension (J): 1-5/8"
• Dimension (K): 7"
