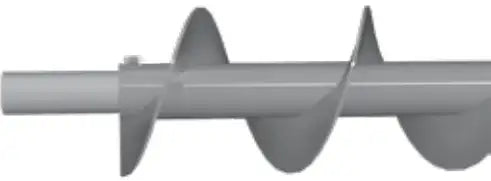

150-2525 3-7/16" Screw Conveyor End Shaft With Seal
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-150-2525-END-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
150-2525 3-7/16" Screw Conveyor End Shaft With Seal Features
150-2525 3-7/16" Screw Conveyor End Shaft With Seal Specifications
150-2525 3-7/16" screw conveyor end shaft with end seal is precision manufactured from high-quality steel. The basic function of an end shaft is to support the screw or screws within a screw conveyor. Our 3-7/16" screw conveyor end shaft is made to specific requirements that ensure proper bearing fitment with no additional vibration and it is jig-drilled for perfect fitting and alignment along with the screw pipe. This end shaft is specifically manufactured to go with #100 and #101 trough ends.
150-2525 3-7/16" Screw Conveyor End Shaft Dimensions
- Part#: 150-2525
- Shaft Size: 3-7/16"
- Dimension (B): 18-5/8"
- Dimension (C): 11-7/8"
- Dimension (D): 9-1/2"
- Dimension (E): 2-3/8"
- Weight: 54.0 LBS
- Part#: 150-2525
- Shaft Size: 3-7/16"
- Dimension (B): 18-5/8"
- Dimension (C): 11-7/8"
- Dimension (D): 9-1/2"
- Dimension (E): 2-3/8"
- Weight: 54.0 LBS
