Power Transmission > Screw Conveyors & Parts > Screw Conveyor Coupling Shaft
147-1556 3" Screw Conveyor Coupling Shaft | Hardened Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-1556-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-1556 3" Screw Conveyor Coupling Shaft | Hardened Steel Features
147-1556 3" Screw Conveyor Coupling Shaft | Hardened Steel Specifications

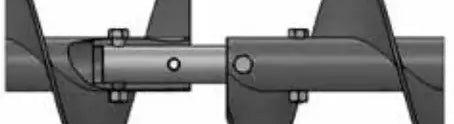

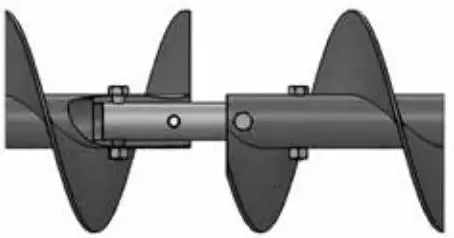

147-1556 3" screw conveyor coupling shaft is manufactured using a select-grade of hardened material for the most demanding and abrasive environments and utilizes a high-torque design. What separates the high-torque coupling shaft from others is the placement of three coupling bolts instead of two. This screw conveyor coupling shaft features a ductile core and is case-hardened for optimal strength and durability. The shaft is also precision jig-drilled to match the jig-drilled screw conveyor pipe for a precise and tight install.
_
147-1556 3" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-1556
- Shaft Size: 3"
- Dimension (B): 19"
- Dimension (C): 1"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 3/4"
- Dimension (G): 3"
- Weight (LBS): 36
_
- Part #: 147-1556
- Shaft Size: 3"
- Dimension (B): 19"
- Dimension (C): 1"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 3/4"
- Dimension (G): 3"
- Weight (LBS): 36
