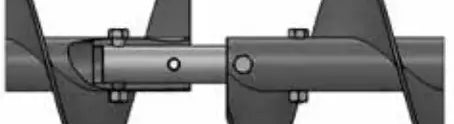

147-1549 3" Screw Conveyor Coupling Shaft | Hardened Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-1549-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-1549 3" Screw Conveyor Coupling Shaft | Hardened Steel Features
147-1549 3" Screw Conveyor Coupling Shaft | Hardened Steel Specifications
147-1549 3" screw conveyor coupling shaft is manufactured using a select-grade of hardened material for the most demanding and abrasive environments. This screw conveyor coupling shaft features a ductile core and is case-hardened for optimal strength and durability. The shaft is also precision jig-drilled to match the jig-drilled screw conveyor pipe for a precise and tight install.
147-1549 3" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-1549
- Shaft Size: 3"
- Dimension (B): 13"
- Dimension (C): 1"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 3/4"
- Dimension (G): 3"
- Weight (LBS): 24.7
- Part #: 147-1549
- Shaft Size: 3"
- Dimension (B): 13"
- Dimension (C): 1"
- Dimension (D): 3"
- Dimension (E): 1"
- Dimension (F): 3/4"
- Dimension (G): 3"
- Weight (LBS): 24.7
