147-1432 2-7/16" Screw Conveyor Coupling Shaft | Hardened Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-1432-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-1432 2-7/16" Screw Conveyor Coupling Shaft | Hardened Steel Features
147-1432 2-7/16" Screw Conveyor Coupling Shaft | Hardened Steel Specifications

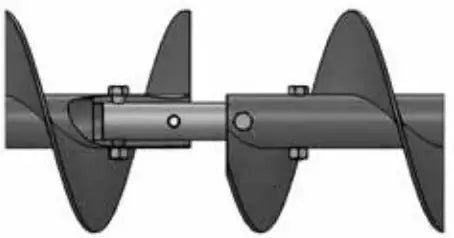

147-1432 2-7/16" screw conveyor coupling shaft is manufactured using a select-grade of hardened material for the most demanding and abrasive environments. This screw conveyor coupling shaft features a ductile core and is case-hardened for optimal strength and durability. The shaft is also precision jig-drilled to match the jig-drilled screw conveyor pipe for a precise and tight install.
147-1432 2-7/16" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-1432
- Shaft Size: 2-7/16"
- Dimension (B): 12-3/4"
- Dimension (C): 15/16"
- Dimension (D): 3"
- Dimension (E): 15/16"
- Dimension (F): 5/8"
- Dimension (G): 3"
- Weight (LBS): 16.2
- Part #: 147-1432
- Shaft Size: 2-7/16"
- Dimension (B): 12-3/4"
- Dimension (C): 15/16"
- Dimension (D): 3"
- Dimension (E): 15/16"
- Dimension (F): 5/8"
- Dimension (G): 3"
- Weight (LBS): 16.2
