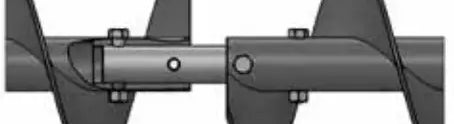

147-0897 3-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-0897-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-0897 3-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel Features
147-0897 3-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel Specifications

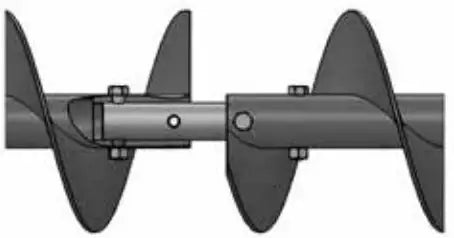

147-0897 3-7/16" screw conveyor coupling shaft is manufactured for high-torque applications and made from a select-grade of cold-rolled steel that is precision machined. What separates the high-torque coupling shaft from others is the placement of three coupling bolts instead of two; these shafts are jig-drilled to exactly match the conveyor pipe. Standard cold rolled 3-7/16" coupling shafts are recommended for any non-abrasive material screw conveyor applications. For abrasive application, we recommend upgrading to a hardened steel coupling shaft.
147-0897 3-7/16" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-0897
- Shaft Size: 3-7/16"
- Dimension (B): 25-1/2"
- Dimension (C): 1-1/2"
- Dimension (D): 4"
- Dimension (E): 1-1/4"
- Dimension (F): 7/8"
- Dimension (G): 4"
- Weight (LBS): 65
- Part #: 147-0897
- Shaft Size: 3-7/16"
- Dimension (B): 25-1/2"
- Dimension (C): 1-1/2"
- Dimension (D): 4"
- Dimension (E): 1-1/4"
- Dimension (F): 7/8"
- Dimension (G): 4"
- Weight (LBS): 65
