Power Transmission > Screw Conveyors & Parts > Screw Conveyor Coupling Shaft
147-0558 2-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-0558-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-0558 2-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel Features
147-0558 2-7/16" Screw Conveyor Coupling Shaft | Cold Rolled Steel Specifications
147-0558 2-7/16" screw conveyor coupling shaft is manufactured from a select-grade of cold-rolled steel and precision machined. It is jig-drilled to assure an exact match with the jig-drilled shaft. Standard cold rolled 2-7/16" coupling shafts are recommended for any non-abrasive material screw conveyor applications. For abrasive application, we recommend upgrading to a hardened steel coupling shaft.

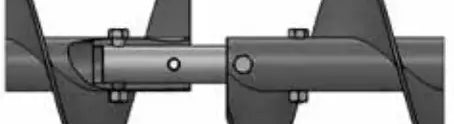

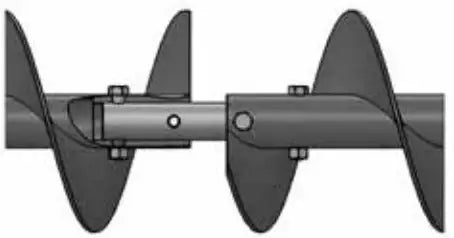

147-0558 2-7/16" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-0558
- Shaft Size: 2-7/16"
- Dimension (B): 12-3/4"
- Dimension (C): 15/16"
- Dimension (D): 3"
- Dimension (E): 15/16"
- Dimension (F): 5/8"
- Dimension (G): 3"
- Weight (LBS): 16.2
- Part #: 147-0558
- Shaft Size: 2-7/16"
- Dimension (B): 12-3/4"
- Dimension (C): 15/16"
- Dimension (D): 3"
- Dimension (E): 15/16"
- Dimension (F): 5/8"
- Dimension (G): 3"
- Weight (LBS): 16.2
