Power Transmission > Screw Conveyors & Parts > Screw Conveyor Coupling Shaft
147-0228 1" Screw Conveyor Coupling Shaft | Cold Rolled Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-147-0228-COUPLING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
147-0228 1" Screw Conveyor Coupling Shaft | Cold Rolled Steel Features
147-0228 1" Screw Conveyor Coupling Shaft | Cold Rolled Steel Specifications

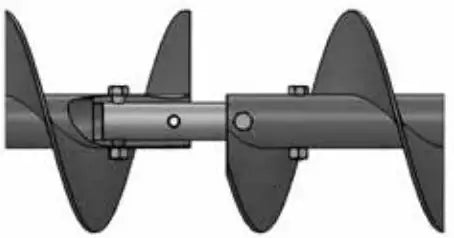

147-0228 1" screw conveyor coupling shaft is manufactured from a select-grade of cold-rolled steel and precision machined. It is jig-drilled to assure an exact match with the jig-drilled shaft. Standard cold rolled 1" coupling shafts are recommended for any non-abrasive material screw conveyor applications. For abrasive application, we recommend upgrading to a hardened steel coupling shaft.
147-0228 1" Screw Conveyor Coupling Shaft Dimensions
- Part #: 147-0228
- Shaft Size: 1"
- Dimension (B): 7-1/2"
- Dimension (C): 1/2"
- Dimension (D): 2"
- Dimension (E): 1/2"
- Dimension (F): 3/8"
- Dimension (G): 1-1/2"
- Weight (LBS): 1.5
- Part #: 147-0228
- Shaft Size: 1"
- Dimension (B): 7-1/2"
- Dimension (C): 1/2"
- Dimension (D): 2"
- Dimension (E): 1/2"
- Dimension (F): 3/8"
- Dimension (G): 1-1/2"
- Weight (LBS): 1.5
