Power Transmission > Screw Conveyors & Parts > Flush End Discharge for Screw Conveyors
14" Screw Conveyor Flush End Discharge
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-14-DISCHARGE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
14" Screw Conveyor Flush End Discharge Features
14" Screw Conveyor Flush End Discharge Specifications

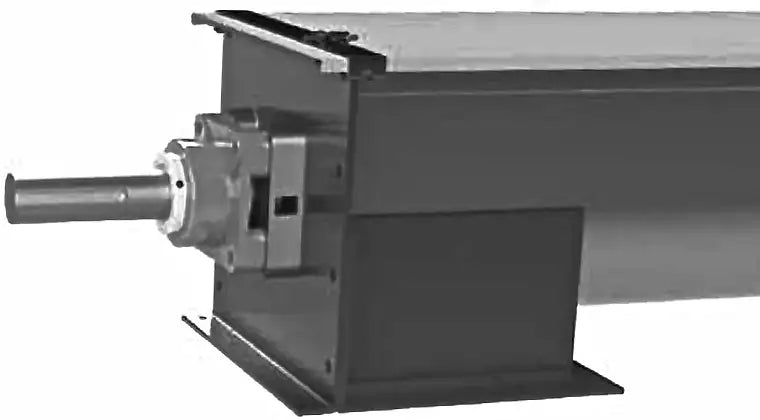

The 14" screw conveyor flush end discharge has a special design that prevents material from sticking or building up between the edge of the discharge opening and the inside of the trough end plate at the extreme end of the screw conveyor. The spout can be mounted flush with the end of the trough and the trough end being modified to act as the fourth side of the discharge spout. The trough end can be any of the standard trough end styles we offer. For more information or to get a quote on a 14" screw conveyor flush end discharge, contact our customer support team and we will be happy to assist you.
14" Screw Conveyor Flush end Discharge Dimensions
- Part #: 7222-14-DISCHARGE
- Diameter of Conveyor: 14"
- Dimension (A): 10-1/8"
- Dimension (B): 15"
- Part #: 7222-14-DISCHARGE
- Diameter of Conveyor: 14"
- Dimension (A): 10-1/8"
- Dimension (B): 15"
