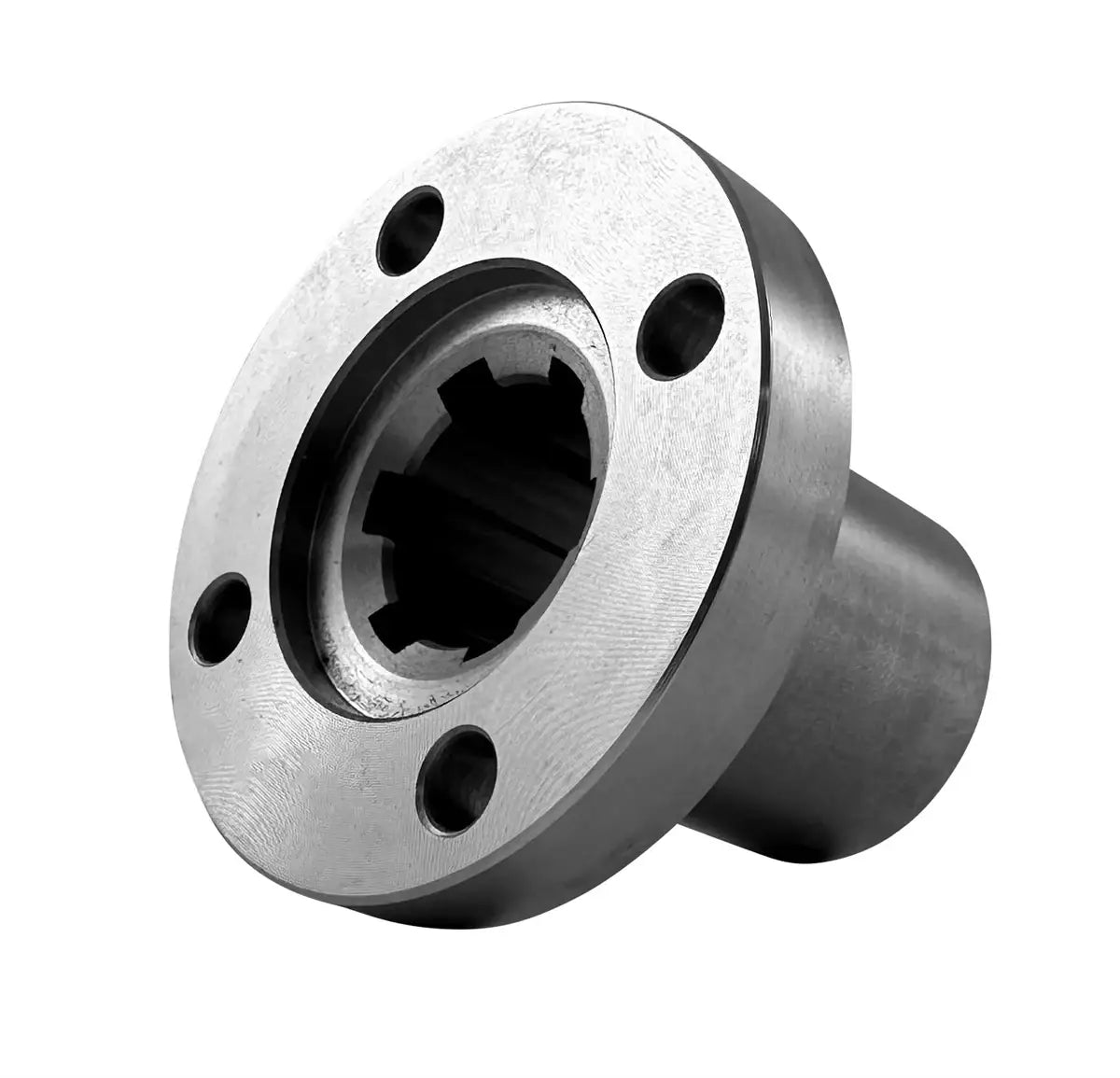

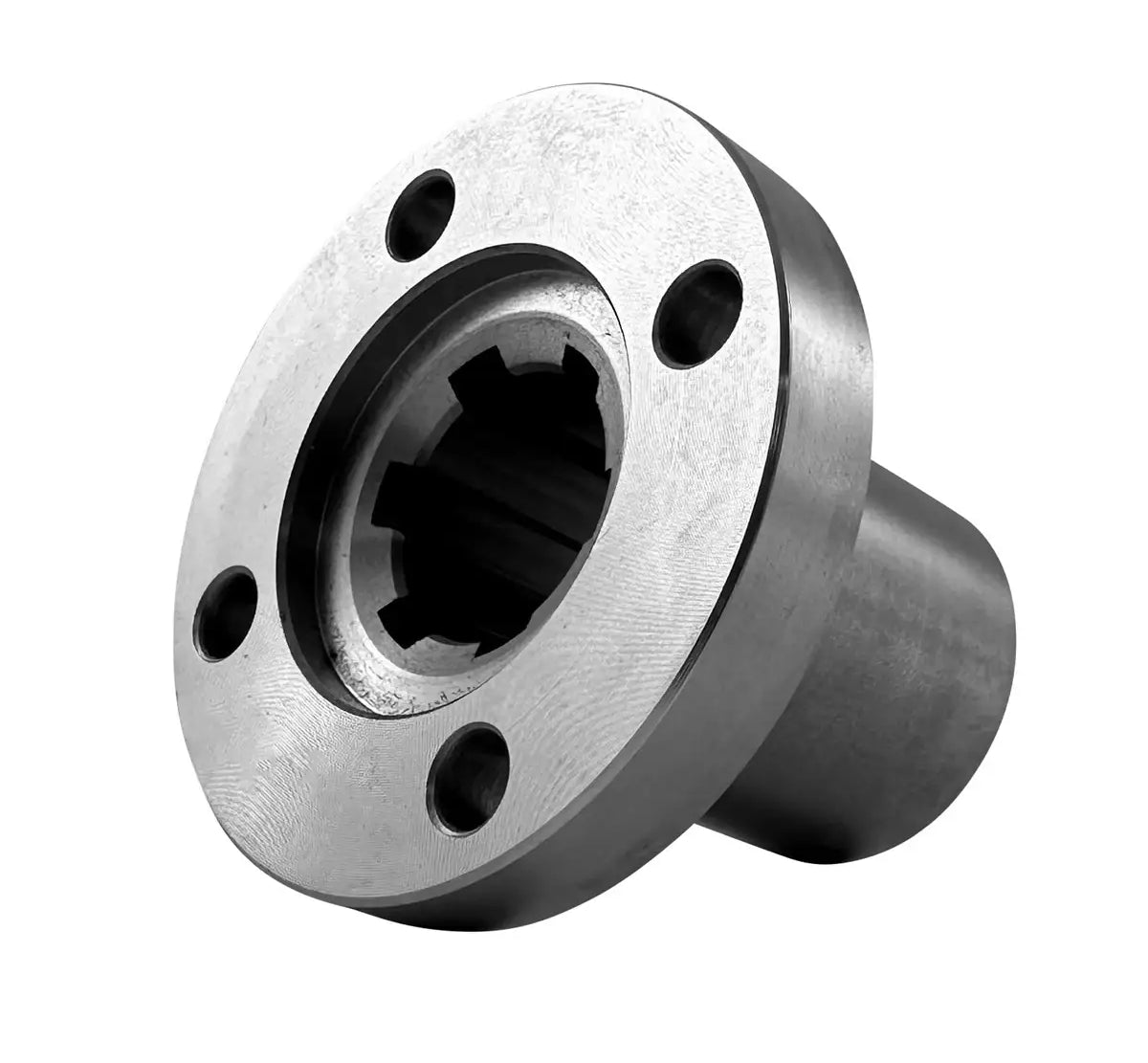

Splined Hub With Flange for 32mm Shaft With 6 Splines - Stainless Material
Splined Hub With Flange for 32mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
Product Code: 64899507-FLANGED-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
This high-quality splined hub with a flange is crafted for a 32mm shaft with 6 splines, using precision-engineered stainless steel that complies with ISO DIN 14 standards for easy interchangeability. Made from 303-grade stainless steel, this hub is perfect for abrasive, corrosive, and food-grade environments. Flanged splined hubs are essential for precise torque transmission in a variety of applications. Specifically designed for a 32mm diameter splined shaft with 6 splines, it offers straightforward installation and reliable, long-term performance. We also provide splined clamp collars with four pre-drilled holes to accompany this hub. For further details or to request a quote on our premium splined hub with flange for a 32mm shaft with 6 splines, please contact our customer service team, who will be delighted to assist you!
32mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: Stainless
- Part #: 64899507
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.50 KG
Feature
- Precision Made from Stainless Steel
- Made for 32mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: Stainless
- Part #: 64899507
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.50 KG
