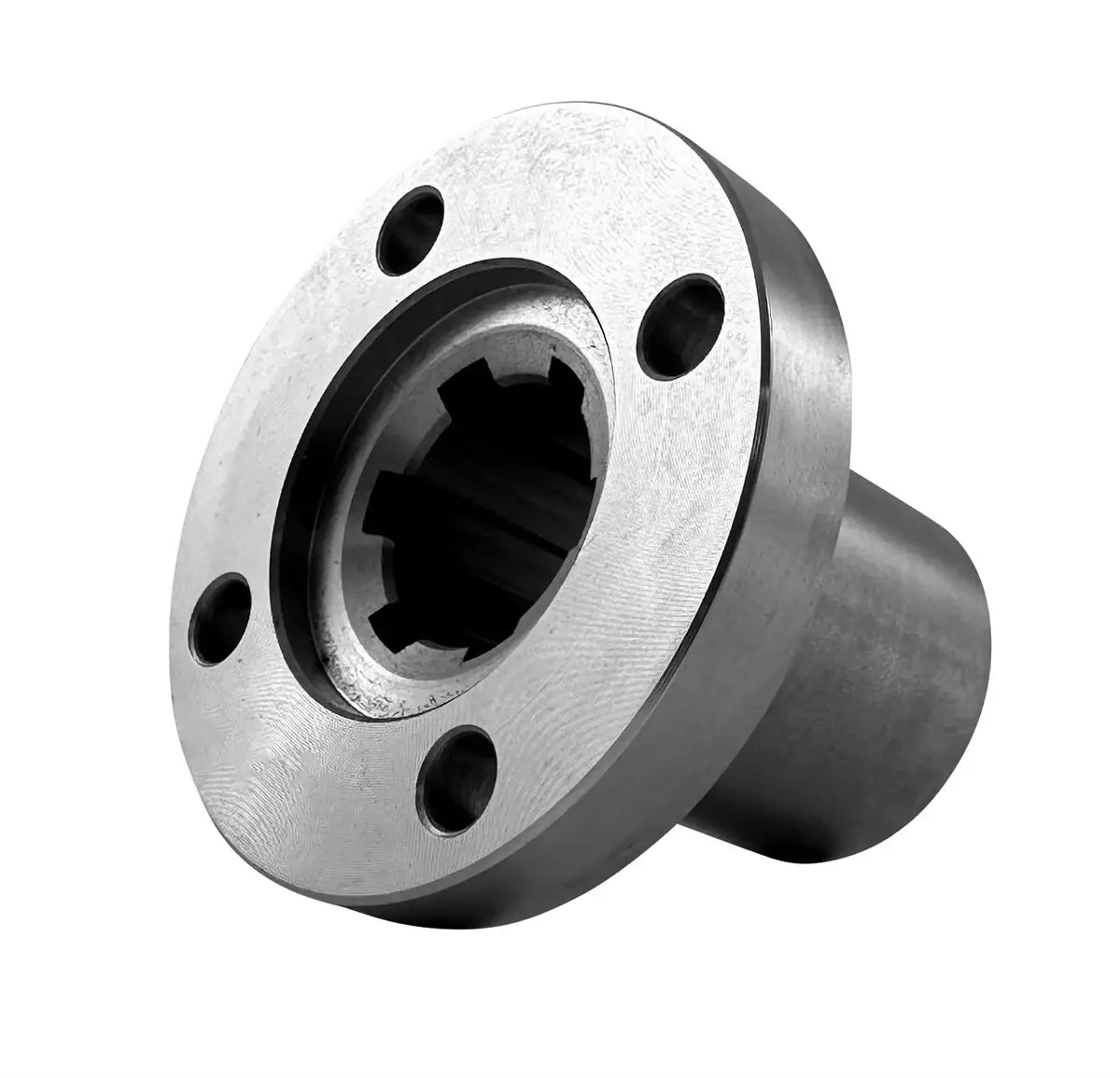

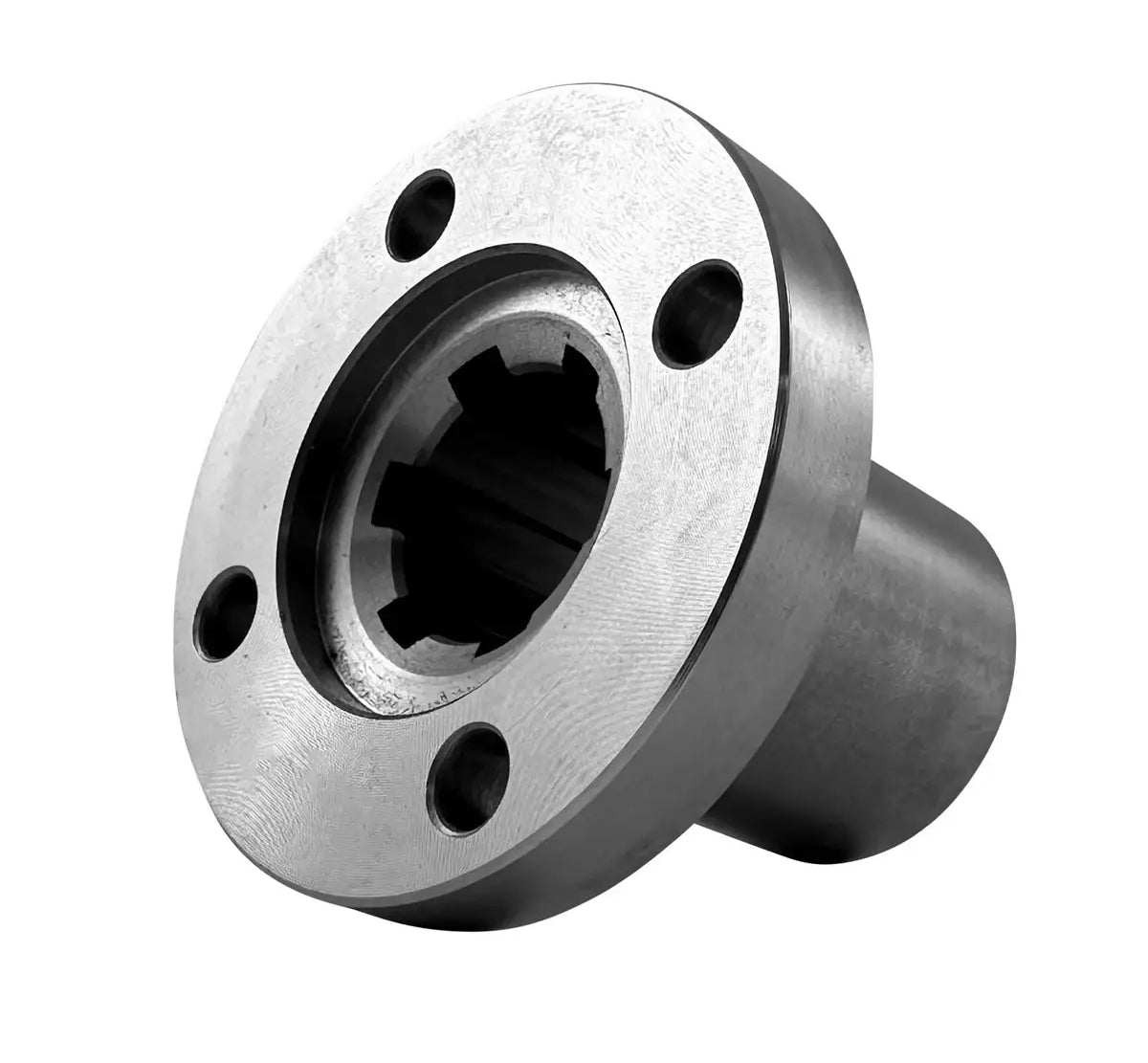

Splined Hub With Flange for 16mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899504-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 16mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 16mm Shaft With 6 Splines - Stainless Material Specifications
This high-quality splined hub with a flange is expertly crafted for a 16mm shaft with 6 splines, using precision-made stainless steel that adheres to ISO DIN 14 standards for seamless interchangeability. Constructed from 303-grade stainless steel, this splined hub is ideal for abrasive, corrosive, and food-grade environments. Flanged splined hubs are essential for precise torque transmission across a wide range of applications. Designed specifically for a 16mm diameter splined shaft with 6 splines, this hub is easy to install and ensures reliable, long-term performance. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For more information or to request a quote on our premium splined hub with flange for a 16mm shaft with 6 splines, please reach out to our customer service team, who will be happy to assist you!
16mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 16mm
- Profile Description: KN13x16
- Material: Stainless
- Part #: 64899504
- Dimension (A): 50mm
- Dimension (B): 36mm
- Dimension (B1): 4.5mm
- Dimension (C): 22mm
- Dimension (F): 25mm
- Dimension (d): 13mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.18 KG
- Made for Shaft Diameter: 16mm
- Profile Description: KN13x16
- Material: Stainless
- Part #: 64899504
- Dimension (A): 50mm
- Dimension (B): 36mm
- Dimension (B1): 4.5mm
- Dimension (C): 22mm
- Dimension (F): 25mm
- Dimension (d): 13mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 40mm
- Weight: 0.18 KG
