Power Transmission > Miscellaneous Items > Splined Hubs With Flange
Splined Hub With Flange for 14mm Shaft With 6 Splines - Stainless Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64899502-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 14mm Shaft With 6 Splines - Stainless Material Features
Splined Hub With Flange for 14mm Shaft With 6 Splines - Stainless Material Specifications

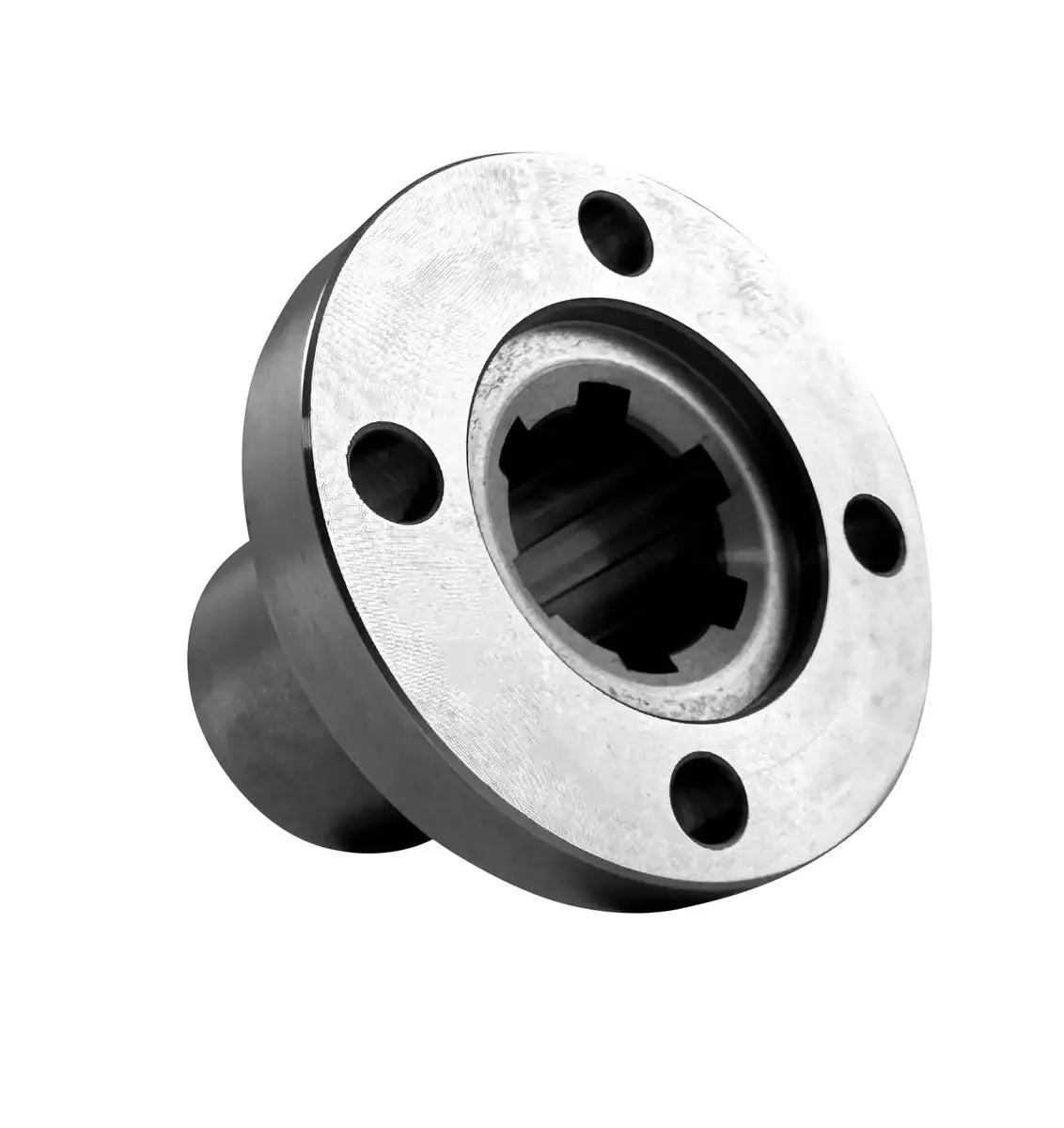

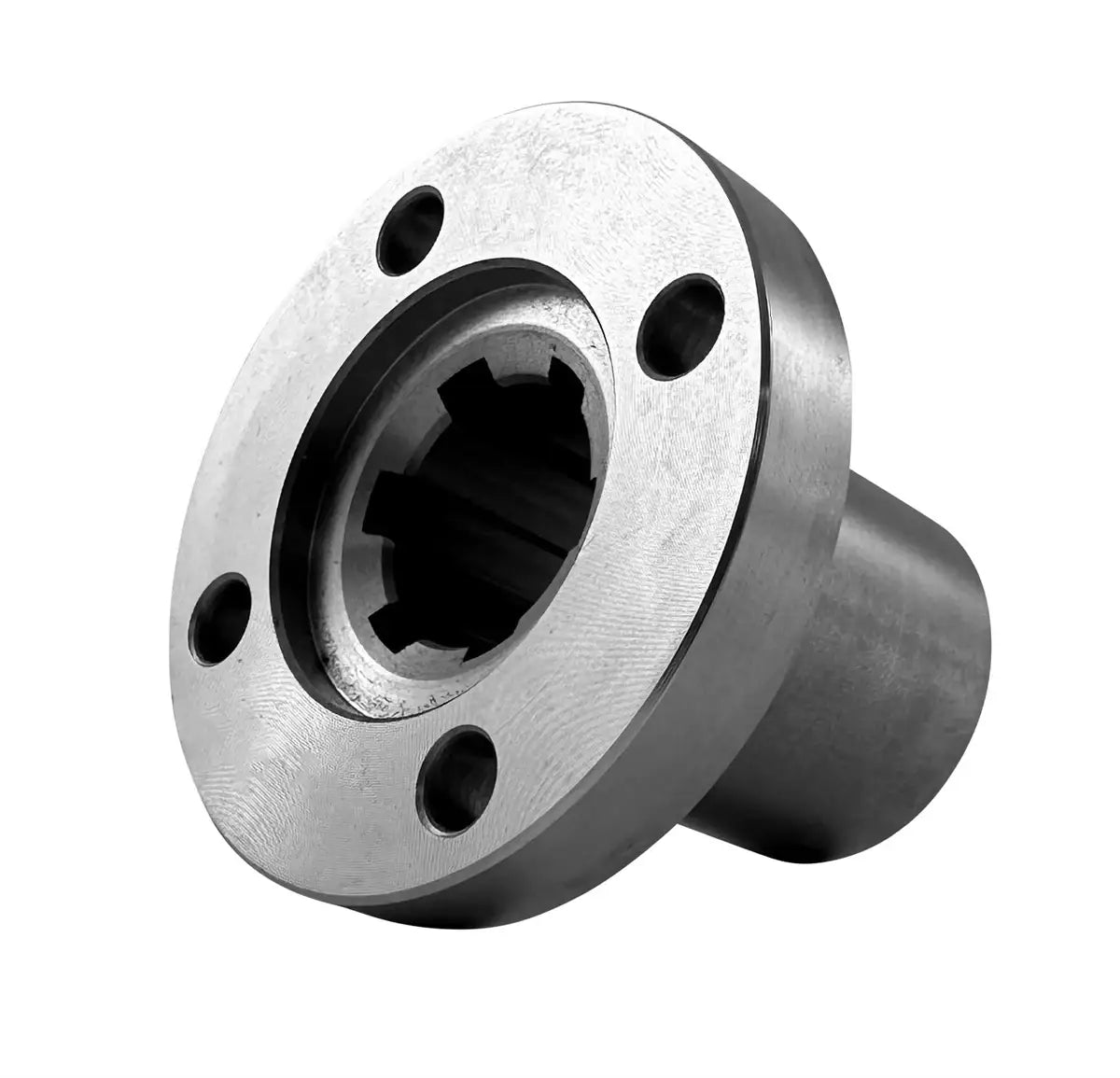

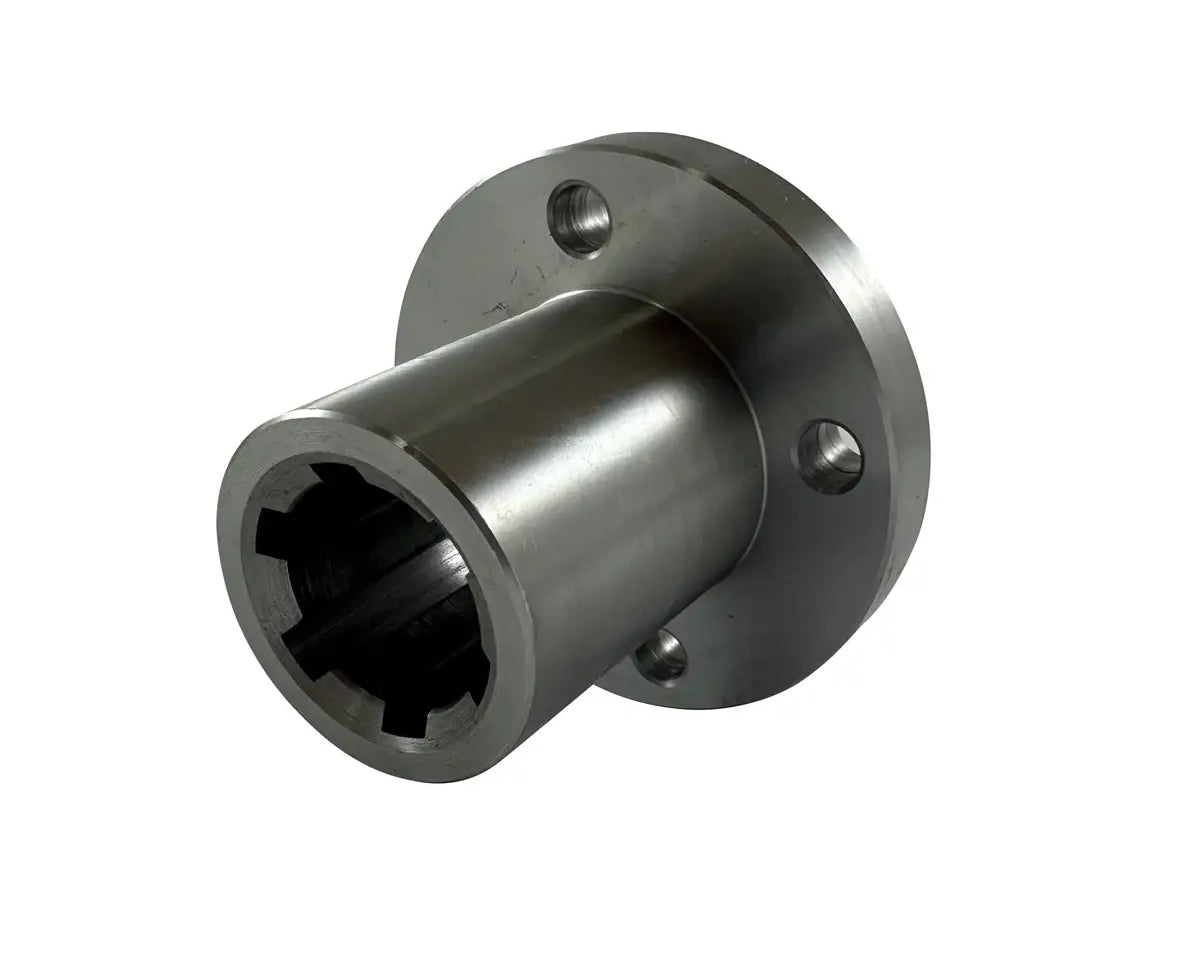

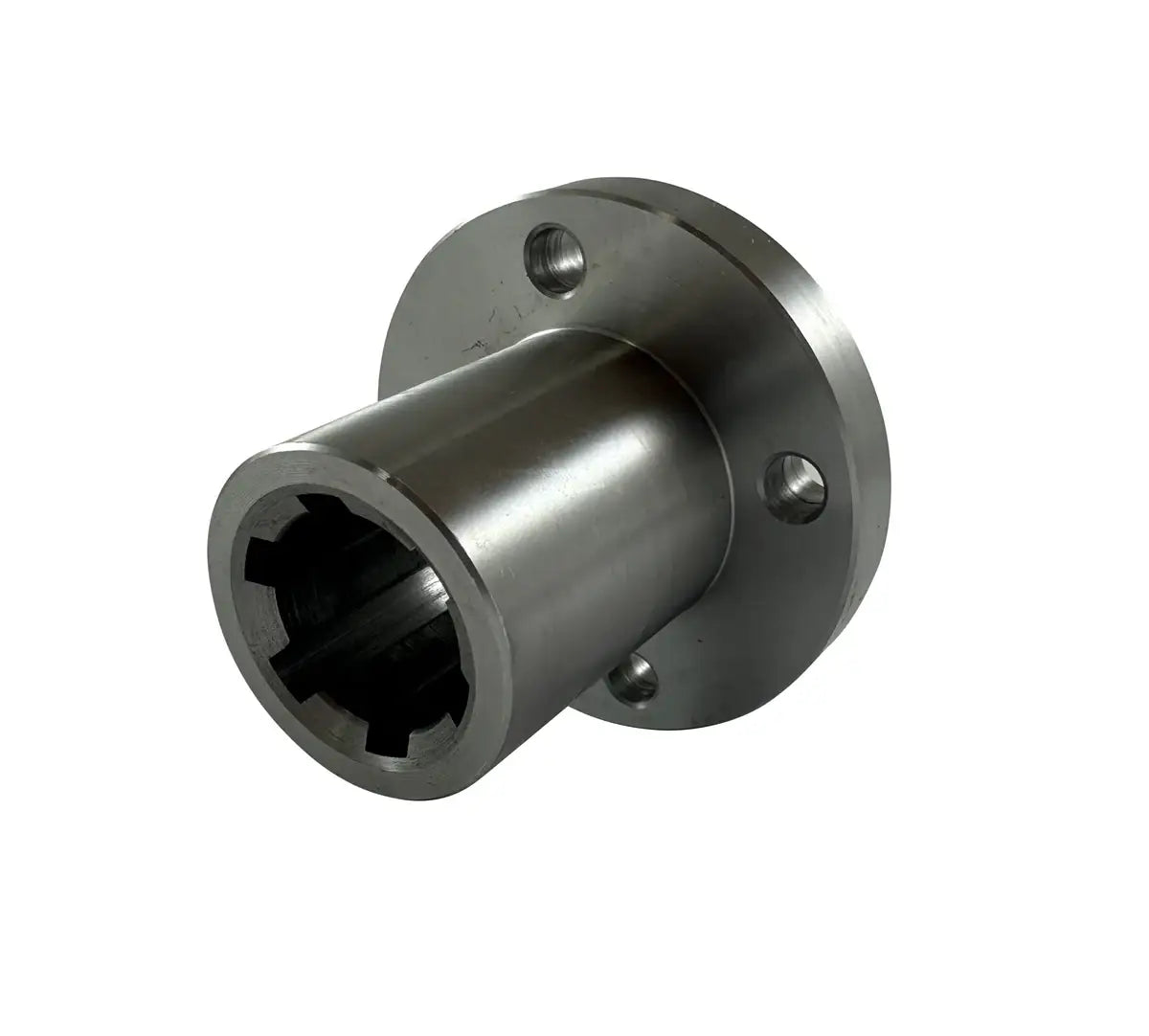

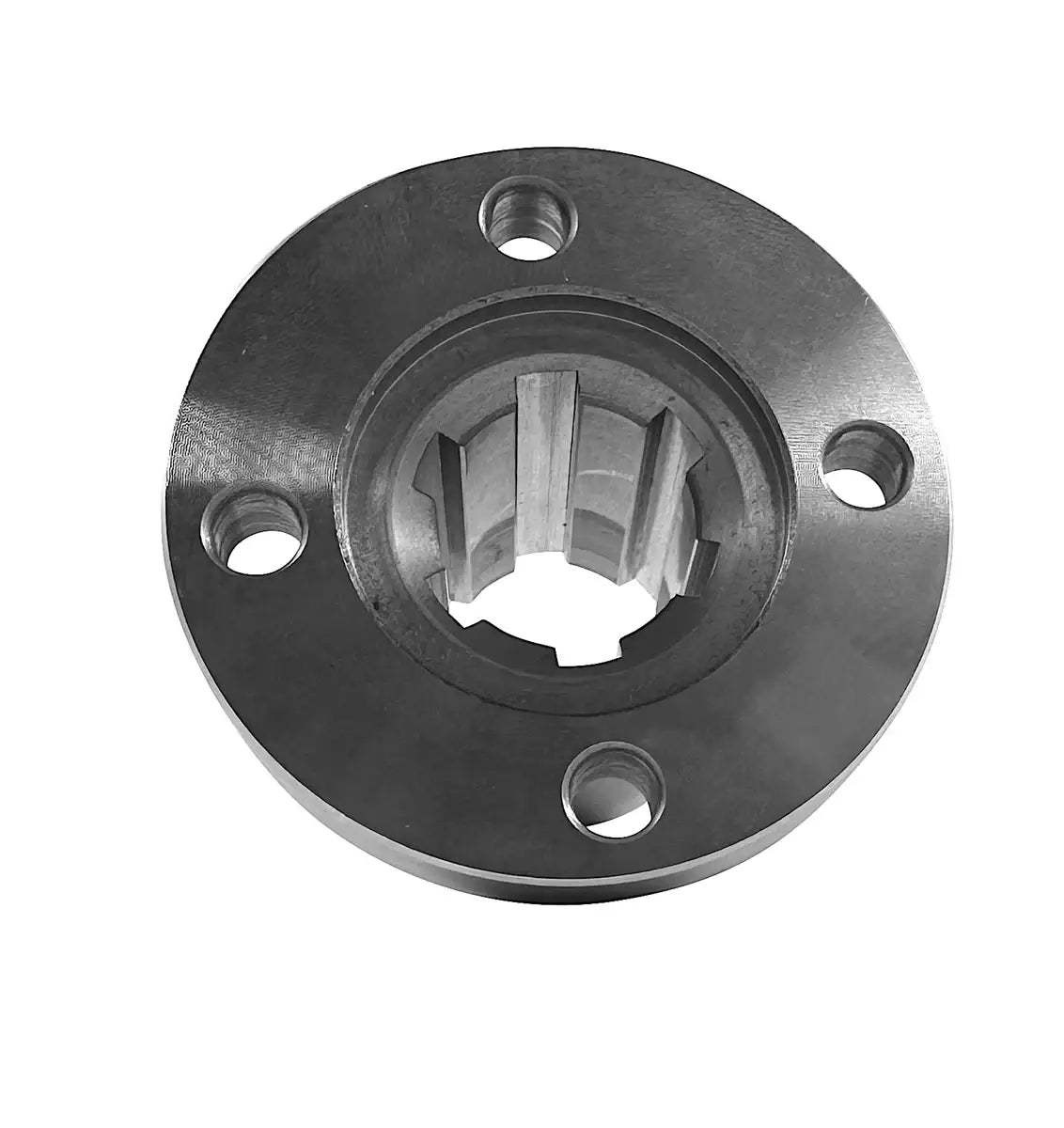

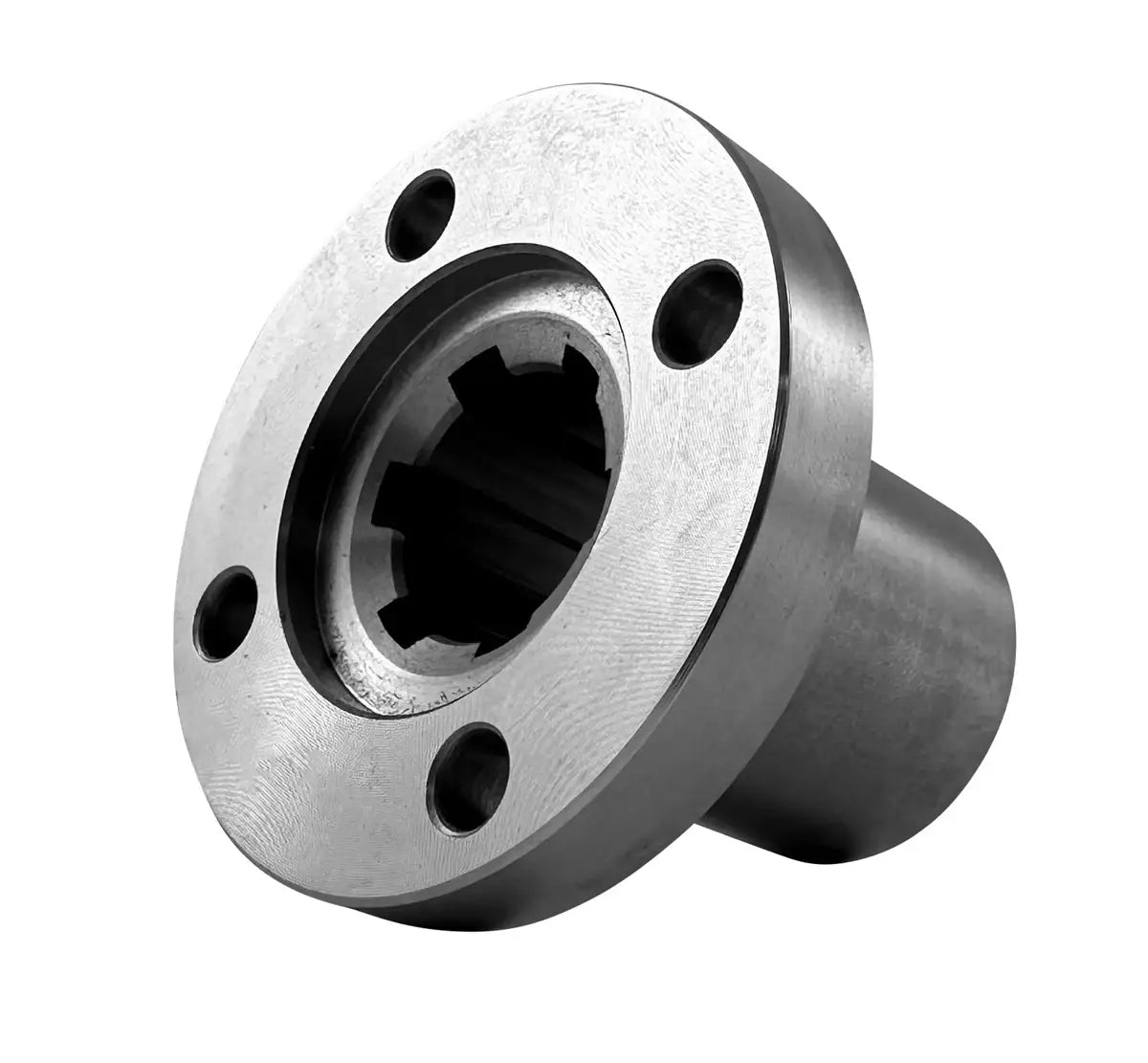

This high-quality splined hub with flange for a 14mm shaft with 6 splines is precision made from high-quality stainless steel and dimensionally confirms with ISO DIN 14 standards for direct interchangeability. Being made from 303-grade stainless steel material allows this splined hub to operate in abrasive, corrosive, and food-grade environments! Splined hubs with a flange are a vital component for accurately transmitting torque in a broad range of applications. Made specifically for a 14mm diameter splined shaft with 6-splines, this hub is easy to install and provides long-term, reliable usage. We also supply splined clamp collars to go with this hub with four pre-drilled holes. If you would like more information or to get a quote on our premium splined hub with flange for a 14mm shaft with 6 splines, please contact our customer service team, and we will gladly assist you!
14mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 14mm
- Profile Description: 11x14KN
- Material: Stainless
- Part #: 64899502
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (F): 20mm
- Dimension (d): 11mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 35mm
- Weight: 0.10 KG
- Made for Shaft Diameter: 14mm
- Profile Description: 11x14KN
- Material: Stainless
- Part #: 64899502
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (F): 20mm
- Dimension (d): 11mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 35mm
- Weight: 0.10 KG
