Power Transmission > Miscellaneous Items > Precision Splined Hubs per DIN ISO 14

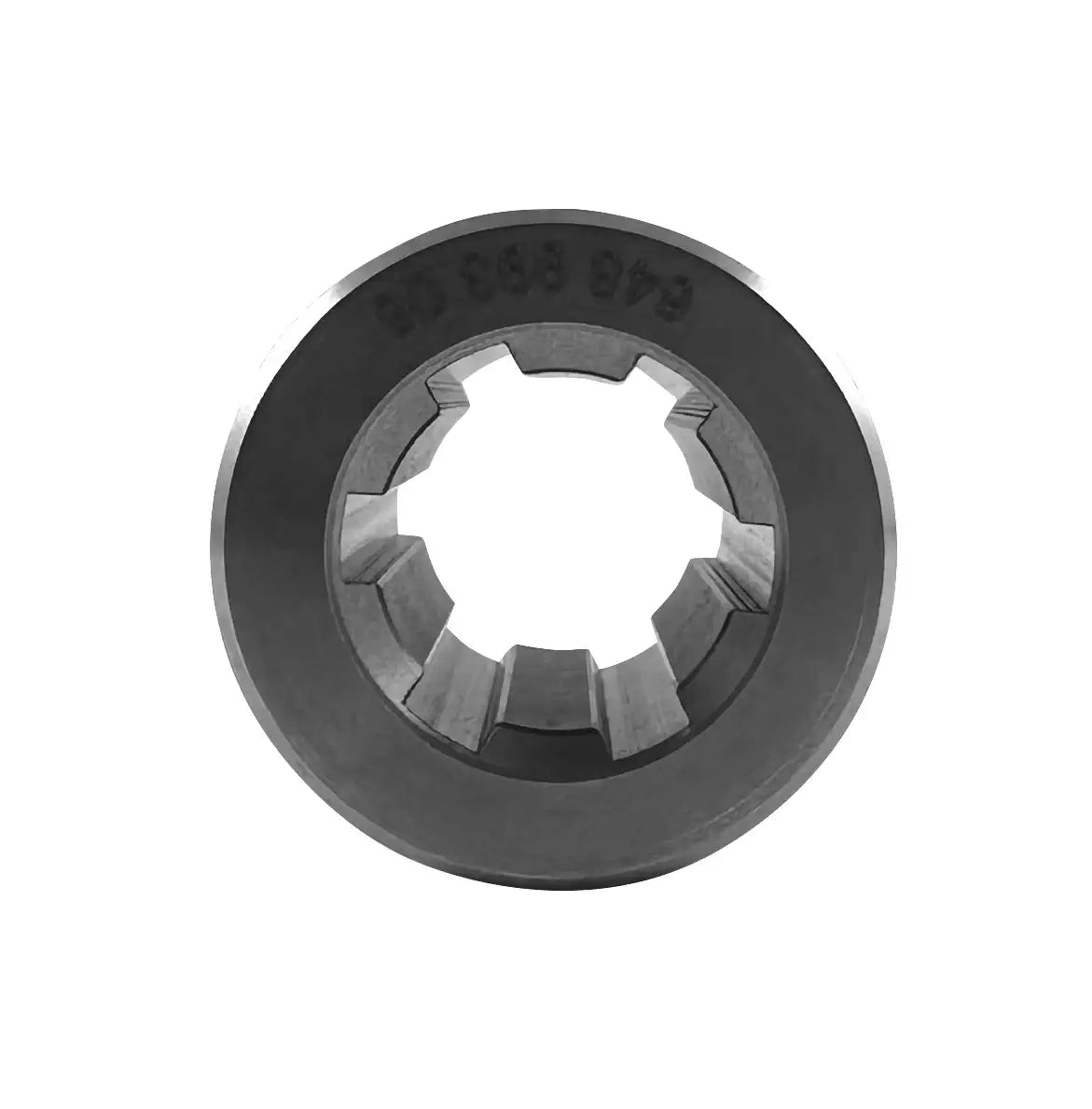

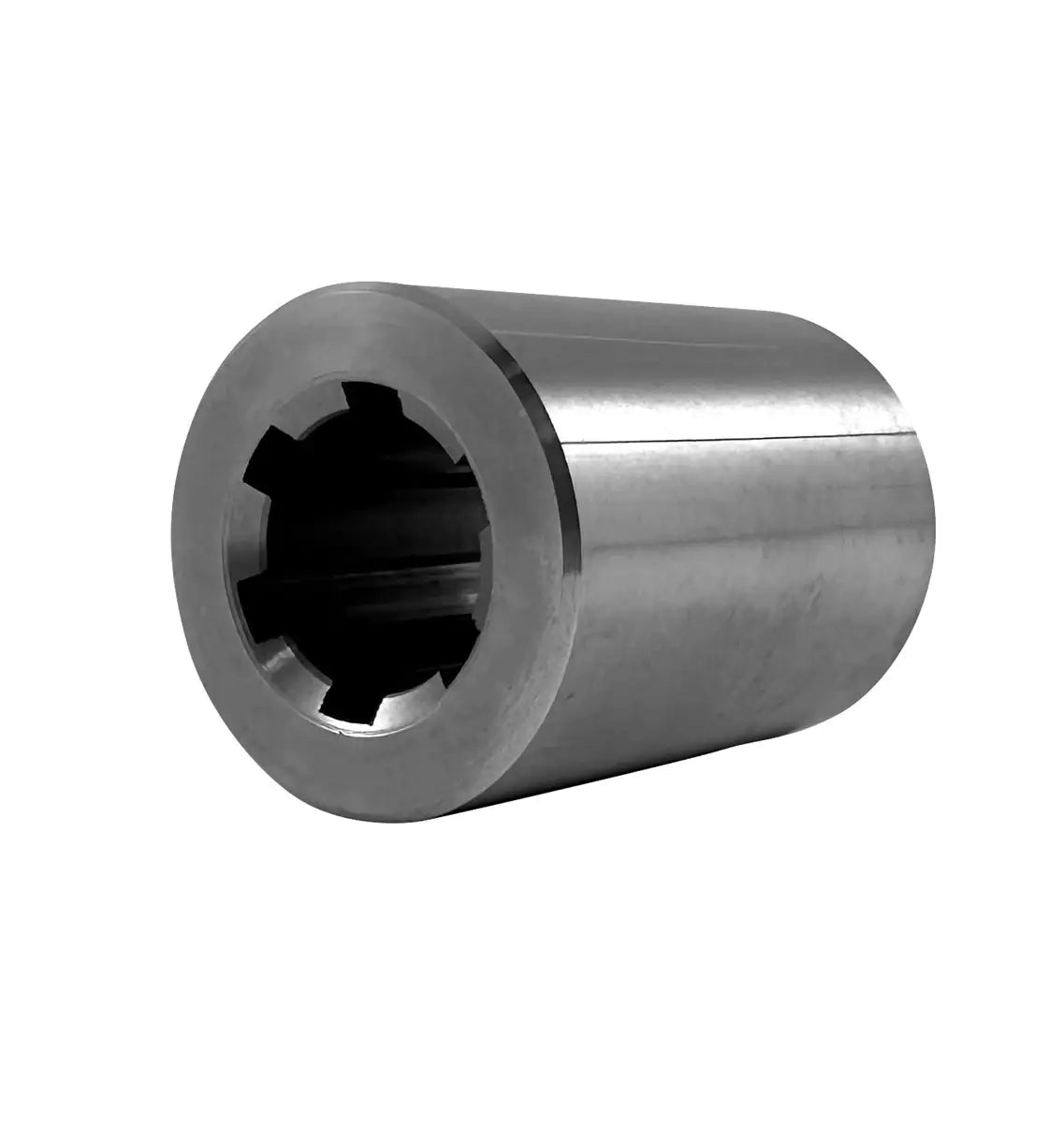

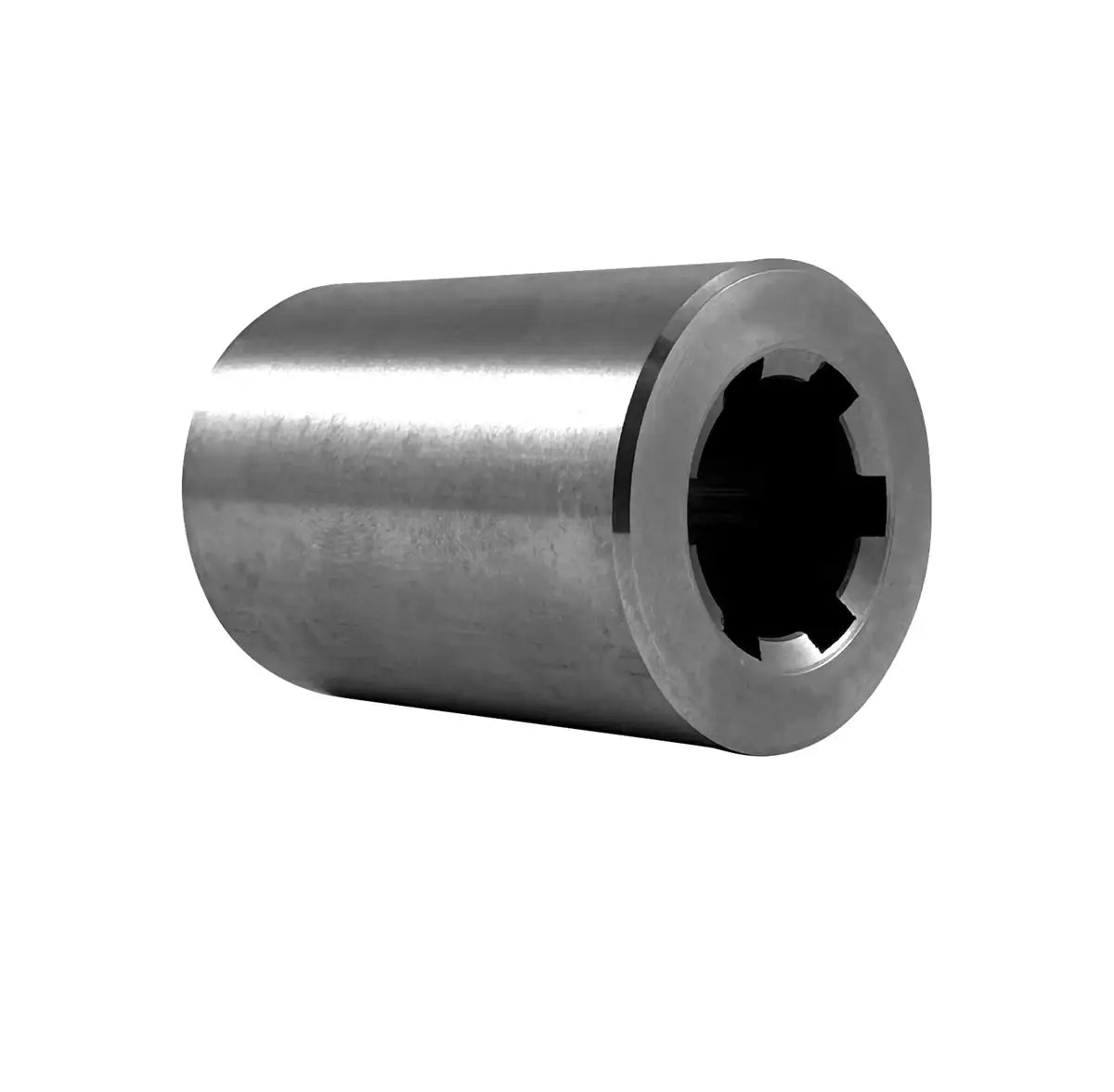

6 Spline Hub for 14mm Splined Shaft - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64899302-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 14mm Splined Shaft - Stainless Steel Features
6 Spline Hub for 14mm Splined Shaft - Stainless Steel Specifications
Our top-of-the-line 14mm spline hub with 6-splines is precision machined from 303-grade stainless steel, allowing it to operate in washdown, food-grade, and abrasive environments! This 6-spline hub for 14mm splined shafting is dimensionally made per DIN ISO 14 standards for superb fitment and universality with other brands. Spline hubs are placed onto splined shafts for various reasons, such as coupling two shafts together, providing a surface to mount things to, and more! For additional information or to get a quote on our premium stainless steel 14mm splined shaft, contact our customer service team, and we will gladly assist you!
14mm Splined Shaft Hub Dimensions
- Part Number: 64899302
- Material: 303 Stainless
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b): 3mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.06 KG
- Part Number: 64899302
- Material: 303 Stainless
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b): 3mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.06 KG
