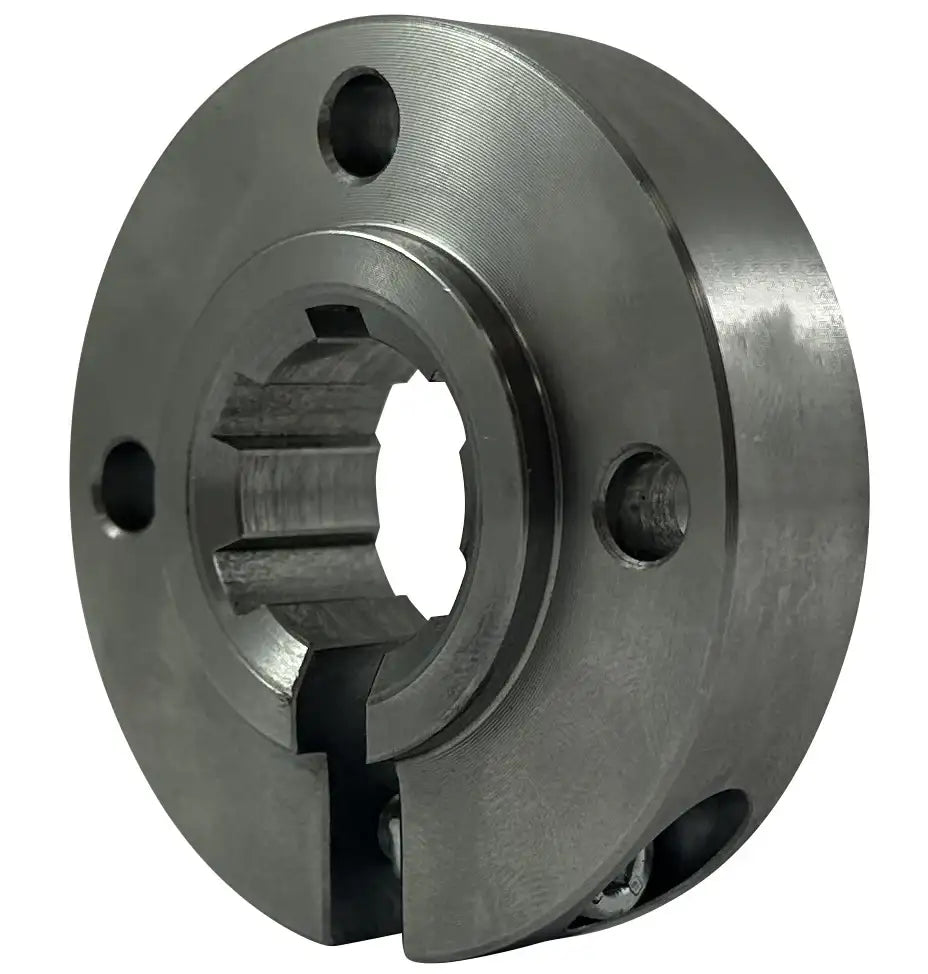

Clamp Collar For 20mm Splined Shaft With 6 Splines - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64860500-CLAMP-COLLAR
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Clamp Collar For 20mm Splined Shaft With 6 Splines - C45 Steel Features
Clamp Collar For 20mm Splined Shaft With 6 Splines - C45 Steel Specifications
Our top-quality clamp collar for a 20mm splined shaft with 6 splines is precisely machined from high-grade C45 steel, offering exceptional strength and superior holding capacity. This collar includes four pre-drilled holes, perfectly complementing a splined hub with a flange. A splined clamp collar is a mechanical device used to secure or position components on a splined shaft. Unlike standard clamp collars, it features internal splines that align with the shaft's splines, ensuring a secure and precise fit. This design enables the collar to transmit torque and resist rotational forces without slipping. For further information or to request a quote on our premium clamp collar for a 20mm splined shaft with 6 splines, please reach out to our customer service team, who will gladly assist you!
20mm Splined Clamp Collar Dimensions
- Part Number: 64860500
- Material: C45 Steel
- Profile Description: KN 16 x 20
- Dimension (A): 52mm
- Dimension (B): 38mm
- Dimension (B1): 5.5mm
- Dimension (C): 25mm
- Dimension (d): 16mm
- Dimension (L): 14mm
- Dimension (K): 2mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.18KG
- Part Number: 64860500
- Material: C45 Steel
- Profile Description: KN 16 x 20
- Dimension (A): 52mm
- Dimension (B): 38mm
- Dimension (B1): 5.5mm
- Dimension (C): 25mm
- Dimension (d): 16mm
- Dimension (L): 14mm
- Dimension (K): 2mm
- Dimension (T): 5.7mm
- Dimension (S): M5
- Weight: 0.18KG
