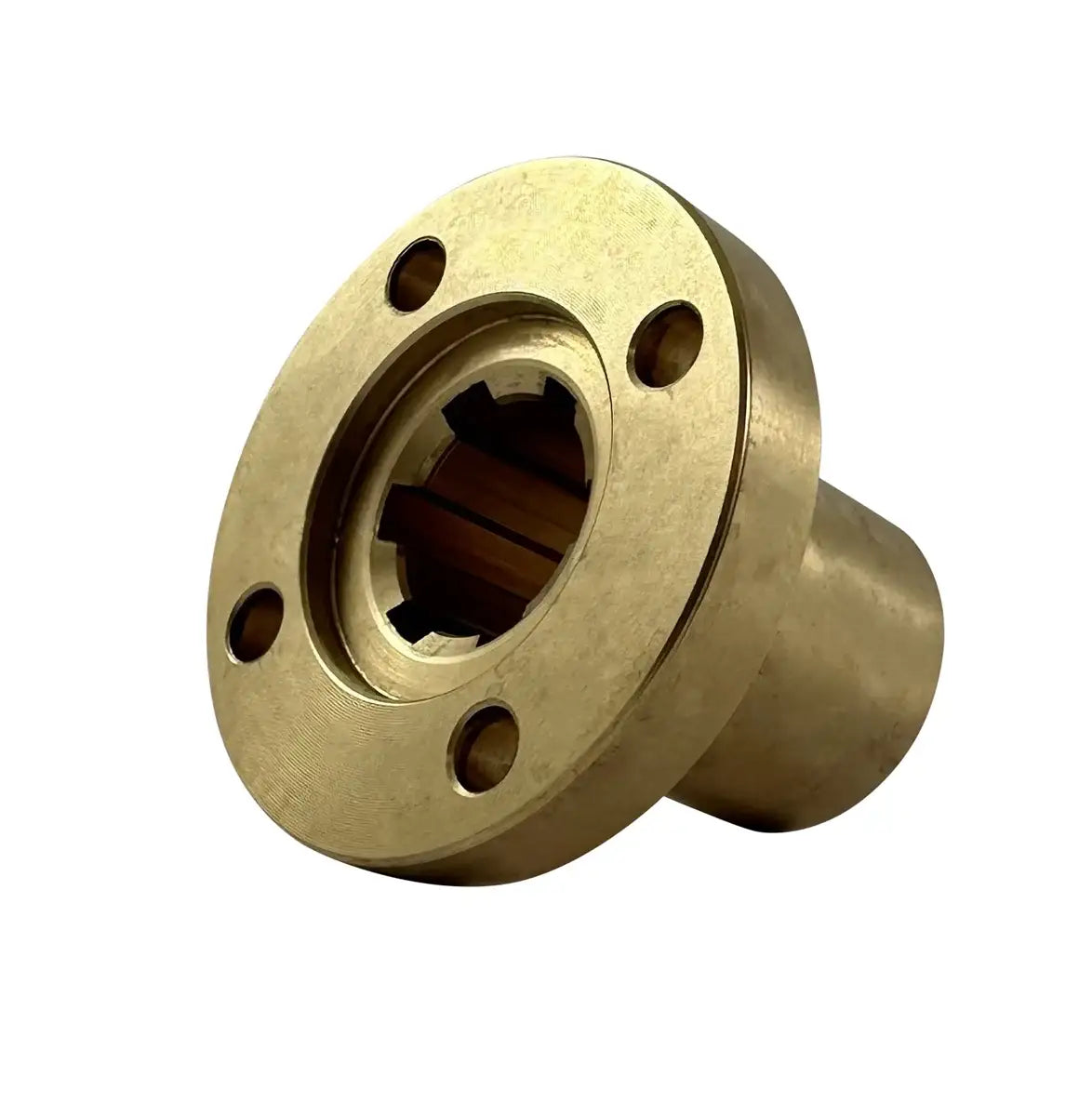

Splined Hub With Flange for 32mm Shaft With 6 Splines - Brass Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64855700-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 32mm Shaft With 6 Splines - Brass Material Features
Splined Hub With Flange for 32mm Shaft With 6 Splines - Brass Material Specifications
Enhance your machinery with our high-performance splined hub with a flange, expertly crafted from premium brass for a 32mm shaft with 6 splines. Designed to meet ISO DIN 14 standards, this hub ensures smooth interchangeability and accurate torque transmission across a variety of applications. Tailored for a 32mm diameter splined shaft with 6 splines, it offers easy installation and dependable, long-lasting performance. We also provide splined clamp collars with four pre-drilled holes to pair with this hub. For more information or to request a quote on our exceptional splined hub with flange for a 32mm shaft with 6 splines, please contact our attentive customer service team, who are ready to assist you!
32mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: Brass
- Part #: 64855700
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.58 KG
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: Brass
- Part #: 64855700
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.58 KG
