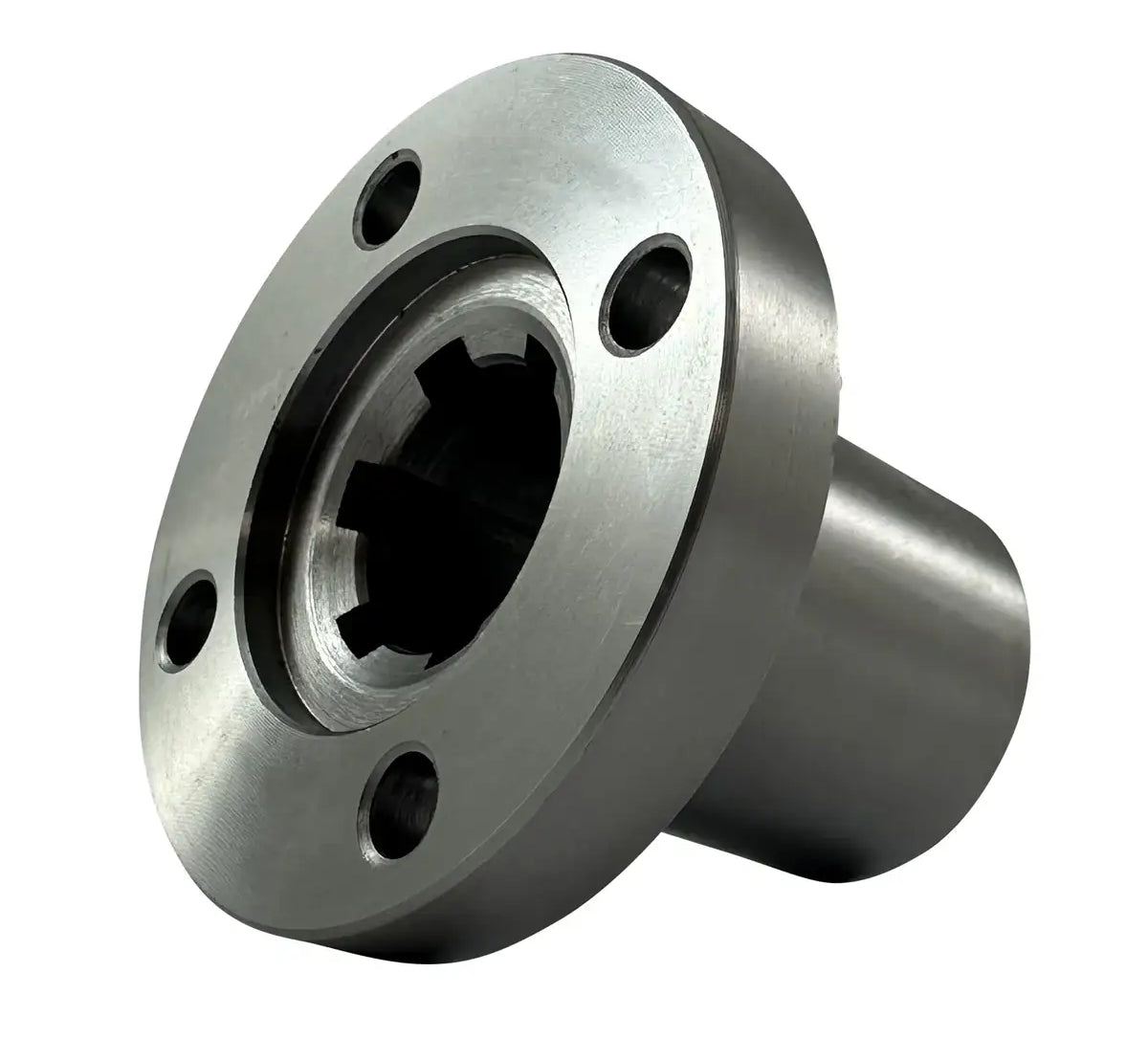

Splined Hub With Flange for 32mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850700-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 32mm Shaft With 6 Splines - C45 Material Features
Splined Hub With Flange for 32mm Shaft With 6 Splines - C45 Material Specifications
This premium splined hub with a flange is engineered for a 32mm shaft with 6 splines and is made from sturdy C45 steel. It adheres to ISO DIN 14 standards, ensuring easy interchangeability. Flanged splined hubs are essential for accurately transmitting torque in a wide range of applications. Designed for a 32mm diameter shaft with 6 splines, this hub is easy to install and offers reliable, long-term performance. We also supply splined clamp collars with four pre-drilled holes to complement this hub. For more information or to obtain a quote on our high-quality splined hub with flange for a 32mm shaft with 6 splines, please reach out to our customer service team, who will be delighted to assist you!
32mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: C45
- Part #: 64850700
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.50 KG
- Made for Shaft Diameter: 32mm
- Profile Description: KN26x32
- Material: C45
- Part #: 64850700
- Dimension (A): 70mm
- Dimension (B): 56mm
- Dimension (B1): 6.6mm
- Dimension (C): 40mm
- Dimension (F): 42mm
- Dimension (d): 26mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 60mm
- Weight: 0.50 KG
