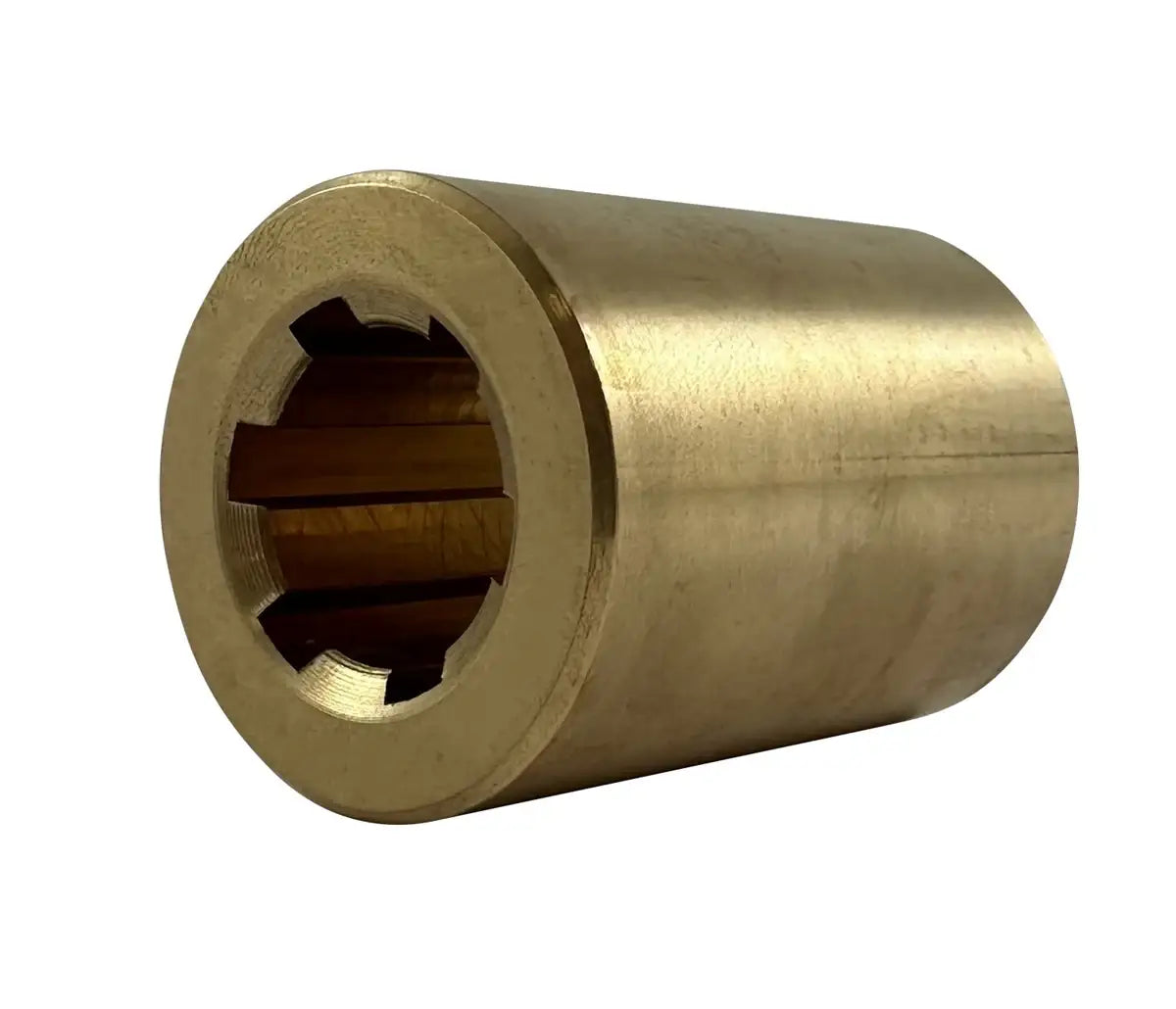

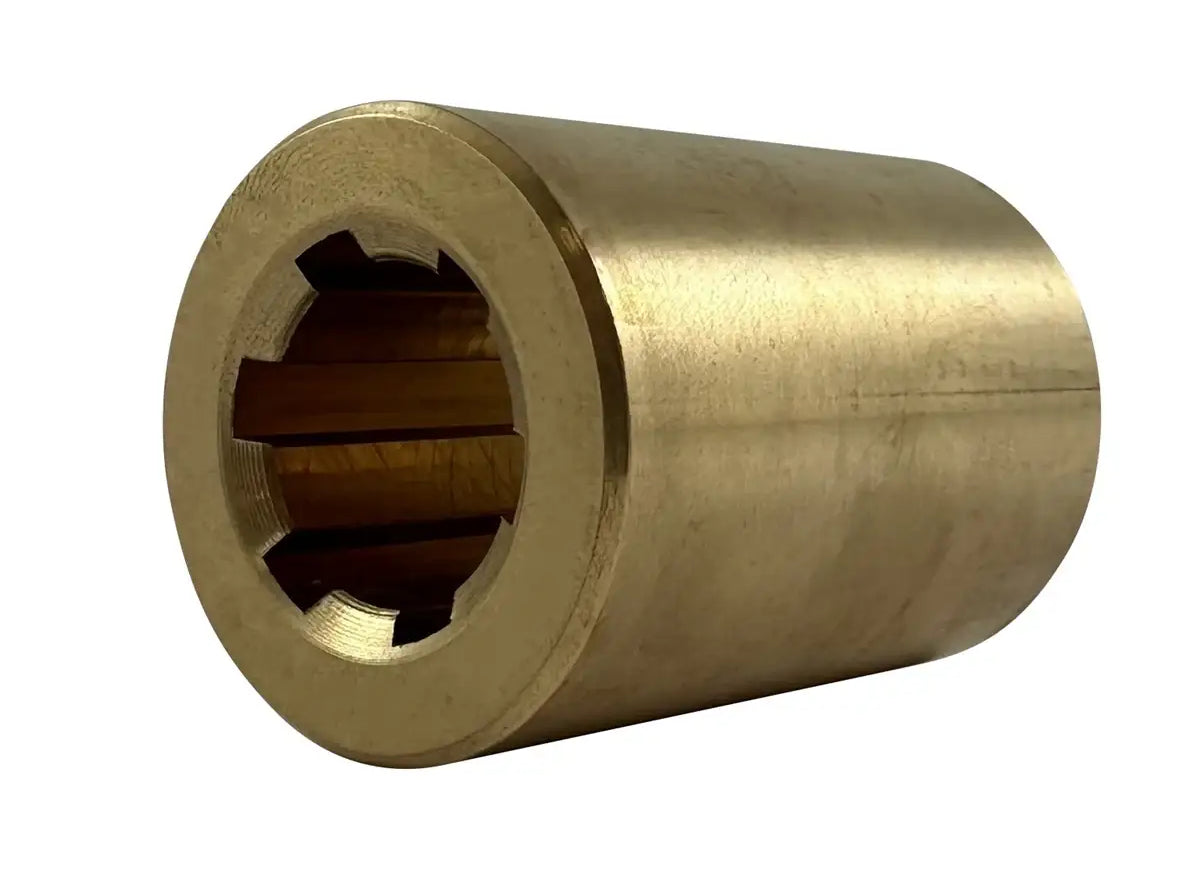

6 Spline Hub for 20mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
SKU: 64835500-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 20mm Splined Shaft - Brass Features
6 Spline Hub for 20mm Splined Shaft - Brass Specifications
Our high-quality 20mm spline hub, with 6 splines, is precisely machined from premium red brass, providing excellent resistance to corrosion and a wide operating temperature range. This 6-spline hub for 20mm splined shafts is designed to DIN ISO 14 standards, ensuring superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts or offering a mounting surface. For more details or to request a quote on our premium brass 20mm splined shaft, please contact our customer service team, and we will be pleased to assist you!
20mm Splined Shaft Hub Dimensions
- Part Number: 64835500
- Material: Red Brass
- Profile Description: KN 16 X 20
- Number of Keyways: 6
- Dimension (D): 20mm
- Dimension (d): 16mm
- Dimension (b): 4mm
- Dimension (A): 32mm
- Length: 45mm
- Weight: 0.22KG
- Part Number: 64835500
- Material: Red Brass
- Profile Description: KN 16 X 20
- Number of Keyways: 6
- Dimension (D): 20mm
- Dimension (d): 16mm
- Dimension (b): 4mm
- Dimension (A): 32mm
- Length: 45mm
- Weight: 0.22KG
