Power Transmission > Miscellaneous Items > Precision Splined Hubs per DIN ISO 14

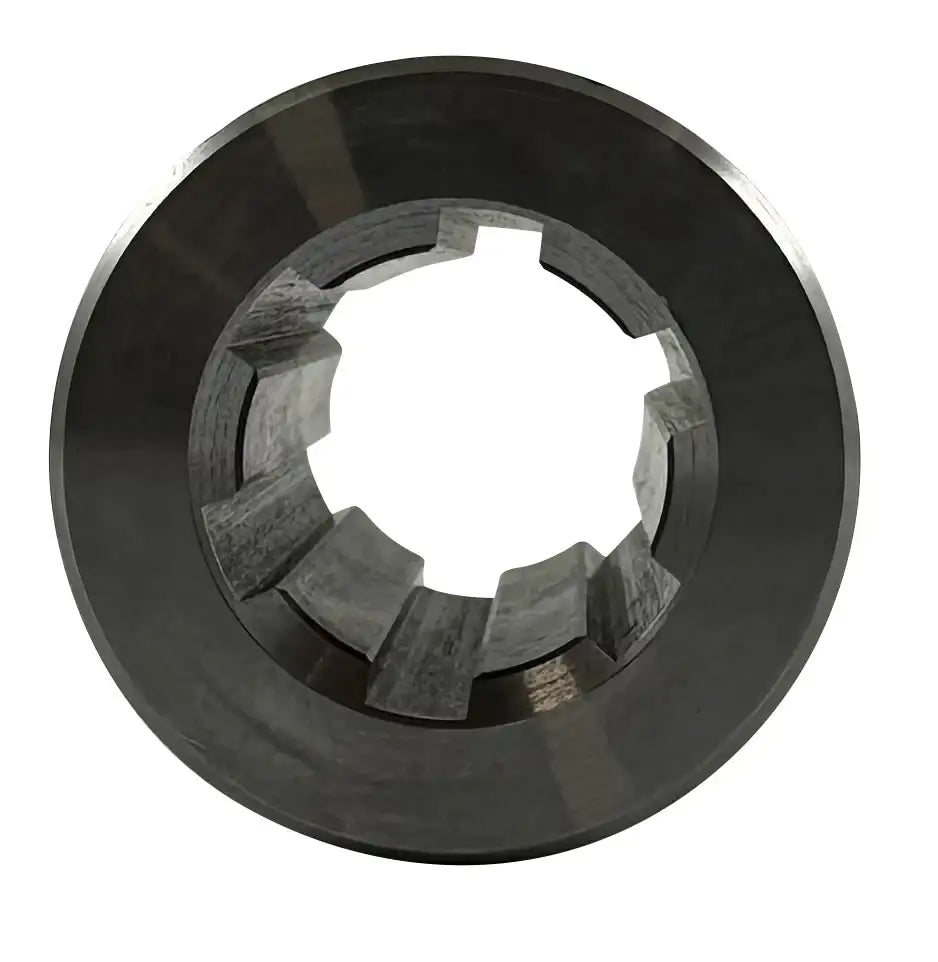

6 Spline Hub for 14mm Splined Shaft - C45 Steel
Note:
Custom Cut to Length Chain Also Available
SKU: 64830200-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 14mm Splined Shaft - C45 Steel Features
6 Spline Hub for 14mm Splined Shaft - C45 Steel Specifications
Our top-of-the-line 14mm spline hub with 6-splines is precision machined from high-strength C45 steel and is designed for maximum torque transmission with precise accuracy! This 6-spline hub for 14mm splined shafting is dimensionally made per DIN ISO 14 standards for superb fitment and universality with other brands. Spline hubs are placed onto splined shafts for various reasons, such as coupling two shafts together, providing a surface to mount things to, and more! For additional information or to get a quote on our premium C45 steel 14mm splined shaft, contact our customer service team, and we will gladly assist you!
14mm Splined Shaft Hub Dimensions
- Part Number: 64830200
- Material: C45 Steel
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b): 3mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.06 KG
- Part Number: 64830200
- Material: C45 Steel
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b): 3mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.06 KG
