By Application > Mining Chain & Sprockets > Mining Bridge Conveyor Chain

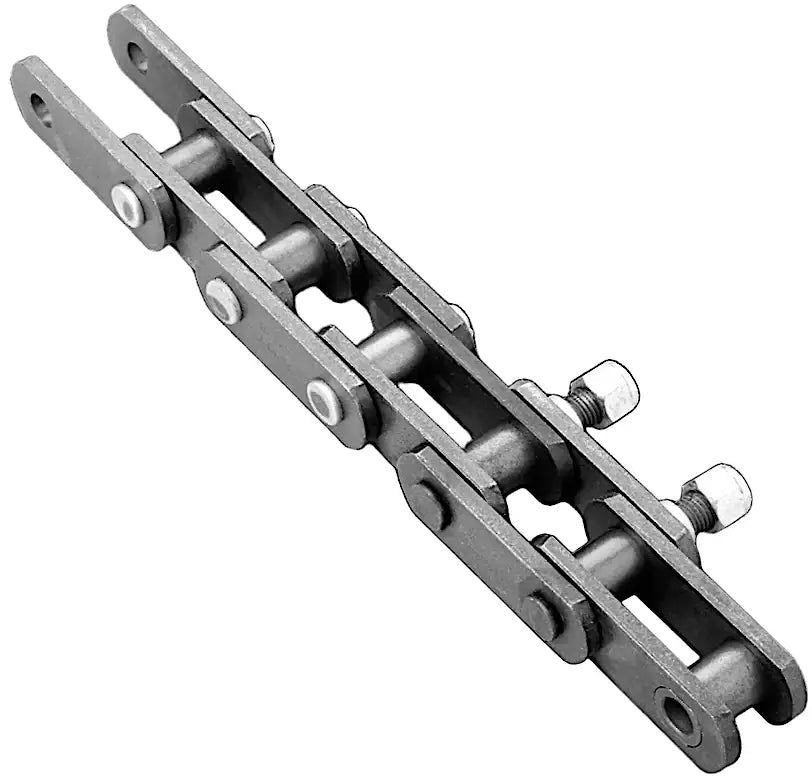

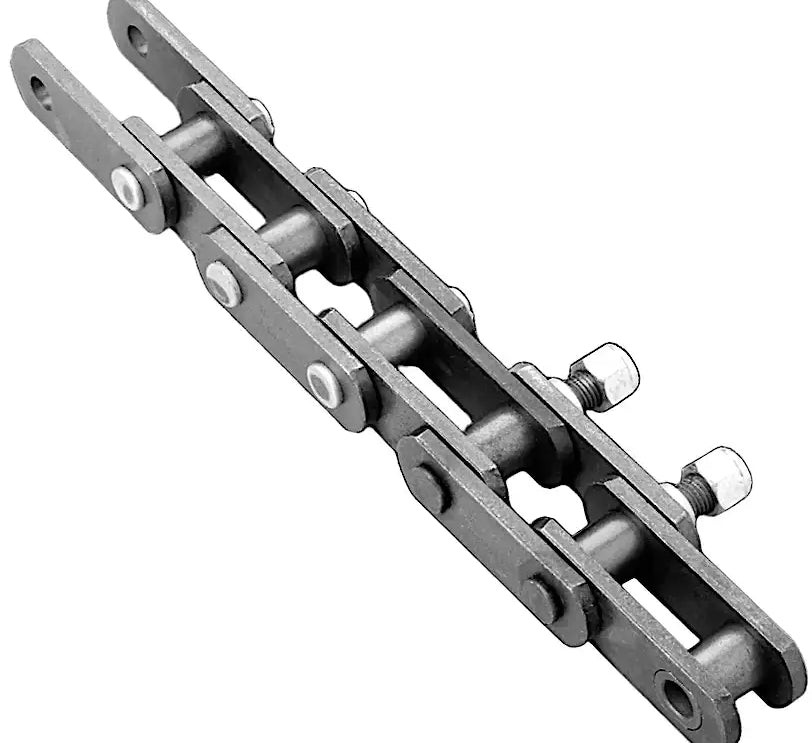

6262 Bridge Conveyor Chain | 6262 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 6262-BRIDGE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6262 Bridge Conveyor Chain | 6262 Chain Features
6262 Bridge Conveyor Chain | 6262 Chain Specifications
6262 bridge conveyor chain is a high-strength engineer-class mining chain utilized specifically in bridge conveying applications. Our precision bridge conveyor chains showcase superior performance, reliability, and strength. Manufactured from high-grade steel grades, with specific heat-tret processes done to each component, this 6262 chain is built to operate in some of the most demanding applications in the world. Additionally, our 6262 chain directly interchanges with other brands and manufacturers. Besides the 6262 chain, we also offer 6262 sprockets! For additional information or to get a quote on the 6262 chain, contact our customer service team, and we will be happy to assist you!
6262 chain dimensions
- Chain size: 6262
- Dimension (P): 2.000"
- Dimension (B): 1.500"
- Dimension (C): 1.000"
- Dimension (D): 1.750"
- Dimension (E): 0.313"
- Dimension (F): 0.313"
- Dimension (G): 0.625"
- Dimension (H): 3.188"
- Average Ultimate Strength: 60,500 LBS
- Rated Working Load: 4,600 LBS
- Weight: 8.1 LBS/ FT
- Chain size: 6262
- Dimension (P): 2.000"
- Dimension (B): 1.500"
- Dimension (C): 1.000"
- Dimension (D): 1.750"
- Dimension (E): 0.313"
- Dimension (F): 0.313"
- Dimension (G): 0.625"
- Dimension (H): 3.188"
- Average Ultimate Strength: 60,500 LBS
- Rated Working Load: 4,600 LBS
- Weight: 8.1 LBS/ FT
