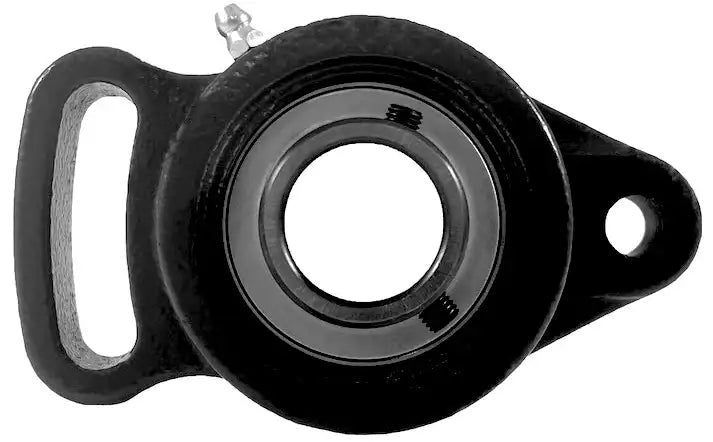

UCFA209-28 Bearing | 1-3/4" Adjustable Flange Bearing

UCFA209-28 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 1-3/4" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA209-28 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA209-28 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA209-28 Bearing Dimensions

• Part #: UCFA209-28
• Bearing I.D: 1-3/4"
• Dimension (a): 7-1/16"
• Dimension (e): 5-3/4"
• Dimension (i): 55/64"
• Dimension (g): 23/32"
• Dimension (m): 1-1/2"
• Dimension (S): 43/64"
• Dimension (S1): 2-27/32"
• Dimension (b): 4-11/32"
• Dimension (f): 3-15/32"
• Dimension (Z): 2-1/16"
• Dimension (Bi): 1.937"
• Dimension (n): 0.748"
• (Bolt Size): 1/2"
• Insert Bearing Part #: UC209-28
• Housing Part #: FA209
• Weight: 4.90 LBS
