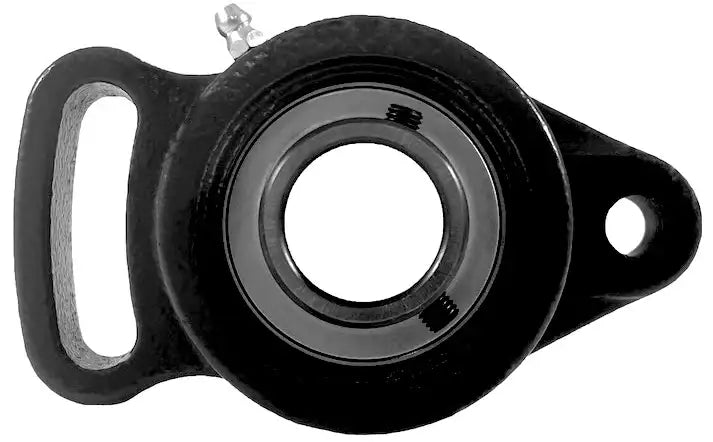

UCFA205-14 Bearing | 7/8" Adjustable Flange Bearing

UCFA205-14 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 7/8" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA205-14 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA205-14 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA205-14 Bearing Dimensions

• Part #: UCFA205-14
• Bearing I.D: 7/8"
• Dimension (a): 4-7/8"
• Dimension (e): 3-25/32"
• Dimension (i): 19/32"
• Dimension (g): 9/16"
• Dimension (m): 1-1/32"
• Dimension (S): 33/64"
• Dimension (S1): 1-15/16"
• Dimension (b): 2-3/4"
• Dimension (f): 2-17/32"
• Dimension (Z): 1-23/64"
• Dimension (Bi): 1.339"
• Dimension (n): 0.563"
• (Bolt Size): 3/8"
• Insert Bearing Part #: UC205-14
• Housing Part #: FA205
• Weight: 1.80 LBS
