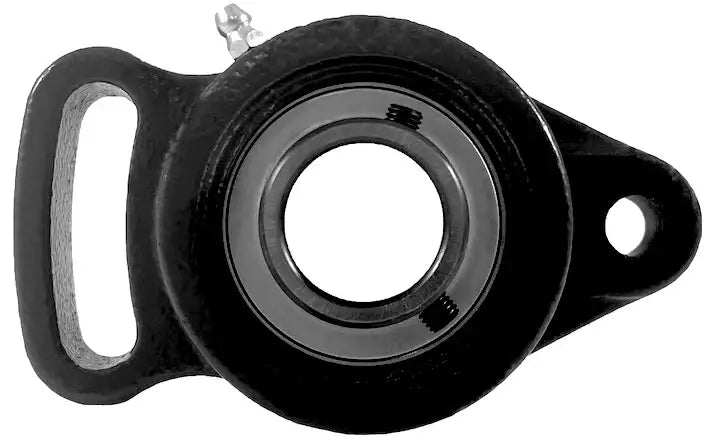

UCFA201-8 Bearing | 1/2" Adjustable Flange Bearing

UCFA201-8 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 1/2" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA201-8 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA201-8 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA201-8 Bearing Dimensions

• Part #: UCFA201-8
• Bearing I.D: 1/2"
• Dimension (a): 3-27/32"
• Dimension (e): 3-1/16"
• Dimension (i): 19/32"
• Dimension (g): 15/32"
• Dimension (m): 1"
• Dimension (S): 25/64"
• Dimension (S1): 1-9/16"
• Dimension (b): 2-3/8"
• Dimension (f): 1-31/32"
• Dimension (Z): 1-5/16"
• Dimension (Bi): 1.220"
• Dimension (n): 0.500"
• (Bolt Size): 5/16"
• Insert Bearing Part #: UC201-8
• Housing Part #: FA204
• Weight: 1.50 LBS
