Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings
SBPFT207 Stamped Steel 3-Bolt Flange Bearing | 35mm Bearing
Note:
Custom Cut to Length Chain Also Available
$36.63
SKU: 5652-SBPFT207-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
SBPFT207 Stamped Steel 3-Bolt Flange Bearing | 35mm Bearing Features
SBPFT207 Stamped Steel 3-Bolt Flange Bearing | 35mm Bearing Specifications

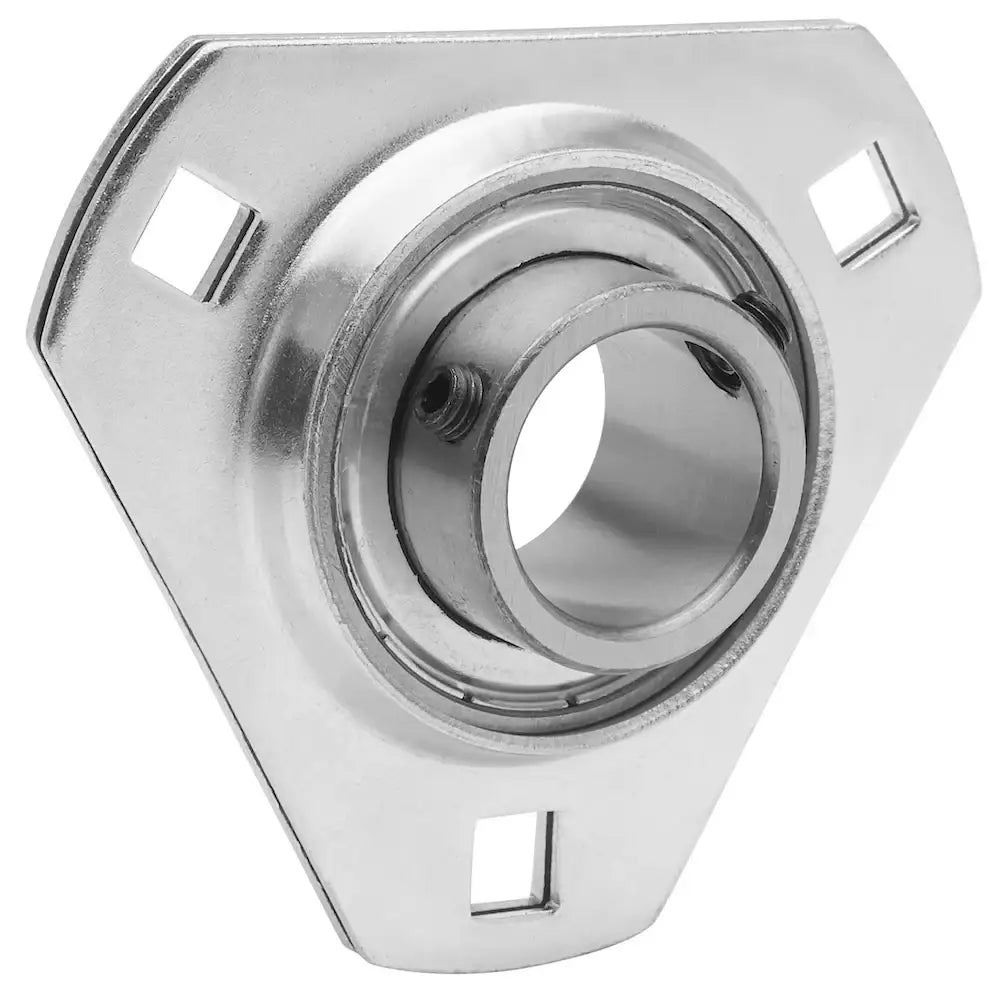

SBPFT207 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 35mm insert bearing that utilizes set screws for securing onto a shaft. SBPFT207 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPFT207 35mm bearing has incredible holding power and stability. Additionally, our SBPFT207 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFT207 bearing, contact our customer support team, and we will be happy to assist you!
SBPFT207 Bearing Dimensions
- Part #: SBPFT207
- Bearing I.D: 35mm
- Dimension (a): 4-11/64"
- Dimension (e): 3-15/16"
- Dimension (h): 1-3/4"
- Dimension (s): 13/32"
- Dimension (c): 3/4"
- Dimension (g): 7/64"
- Dimension (b): 1-1/4"
- Dimension (f): 3-3/16"
- Dimension (Bi): 1.260"
- Dimension (n): 0.335"
- Bolt Size: 3/8"
- Insert Bearing #: SB207
- Housing #: PFT207
- Weight: 1.54 LBS
