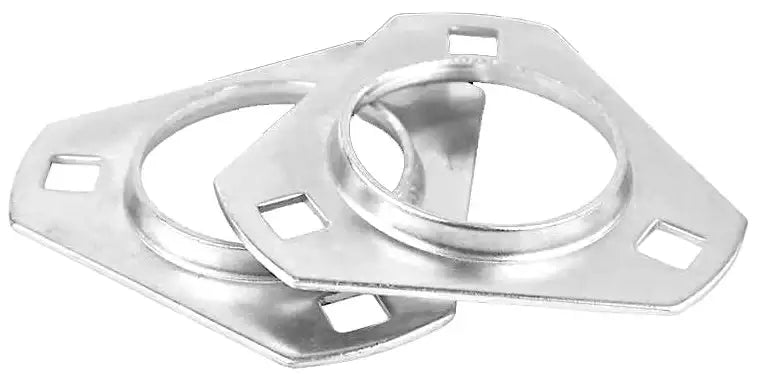

PFT207 Stamped Steel 3-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$13.53
SKU: 5652-PFT207-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFT207 Stamped Steel 3-Bolt Flange Bearing Housing Features
PFT207 Stamped Steel 3-Bolt Flange Bearing Housing Specifications
PFT207 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt triangle flange bearing housing. Our PFT207 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFT207 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFT207 housings, contact our customer support team, and we will be happy to assist you!
PFT207 Housing Dimensions
- Housing Part #: PFT207
- For Bearing IDs: 1-1/4", 1-5/16", 1-3/8", 1-7/16"
- Dimension (A): 4-5/32"
- Dimension (B): 1-3/4"
- Dimension (C): 1-17/64"
- Dimension (D): 13/32" (+/-0.005")
- Dimension (E): 3-15/16"
- Dimension (F): 3/8"
- Dimension (G): 0.104"
- Dimension (H): 72mm
- Min. Frame Opening: 3-3/16"
- Housing Part #: PFT207
- For Bearing IDs: 1-1/4", 1-5/16", 1-3/8", 1-7/16"
- Dimension (A): 4-5/32"
- Dimension (B): 1-3/4"
- Dimension (C): 1-17/64"
- Dimension (D): 13/32" (+/-0.005")
- Dimension (E): 3-15/16"
- Dimension (F): 3/8"
- Dimension (G): 0.104"
- Dimension (H): 72mm
- Min. Frame Opening: 3-3/16"
