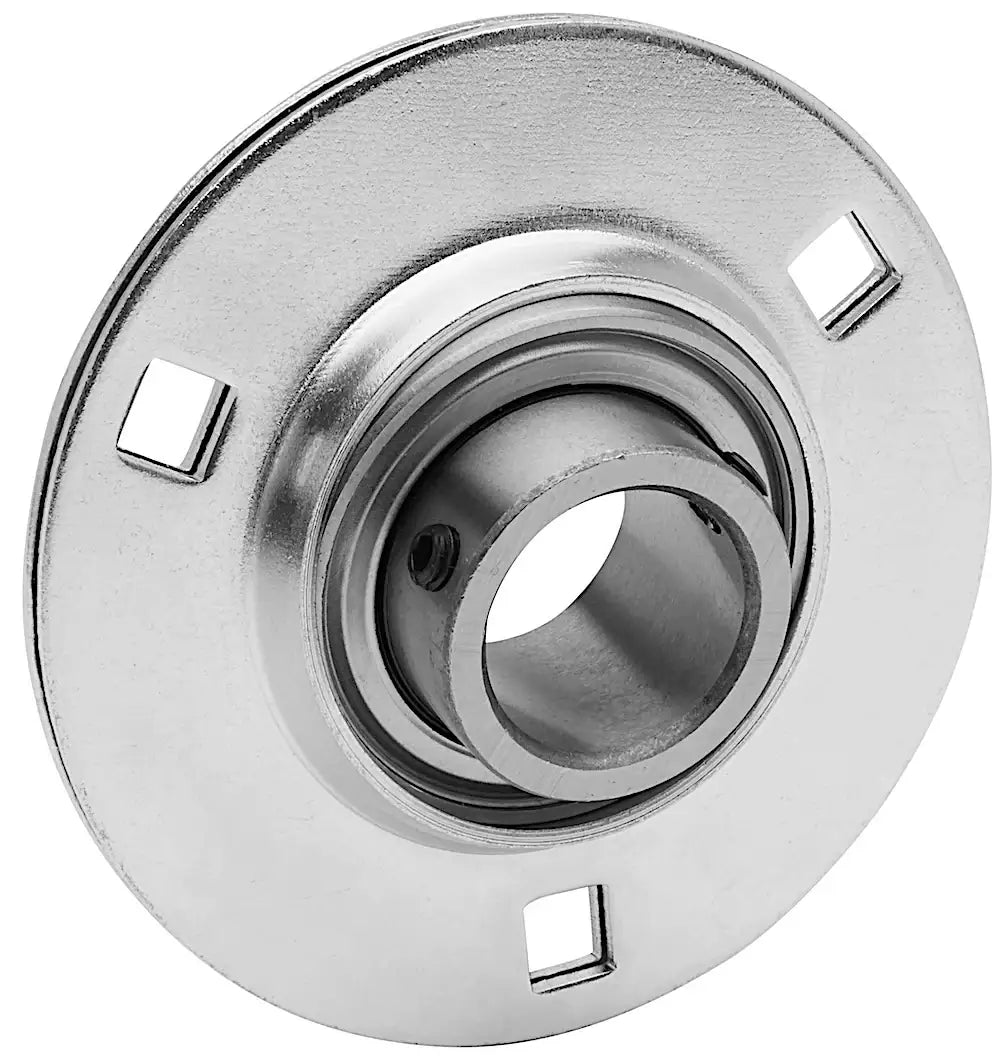

SBPF205-16G Stamped Steel 3-Bolt Flange Bearing | 1" Bearing

SBPF205-16G stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 1" insert bearing that utilizes set screws for securing onto a shaft. SBPF205-16G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPF205-16G 1" bearing has incredible holding power and stability. Additionally, our SBPF205-16G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF205-16G bearing, contact our customer support team, and we will be happy to assist you!

SBPF205-16G Bearing Dimensions

• Part #: SBPF205-16G
• Bearing ID: 1"
• Dimension (a): 3-3/4"
• Dimension (e): 2-63/64"
• Dimension (g): 3/32"
• Dimension (c): 21/32"
• Dimension (s): 11/32"
• Dimension (f): 2-19/32"
• Dimension (Bi): 1.063"
• Dimension (n): 0.295"
• Bolt Size: 5/16"
• Number of Bolt Holes: 3
• Insert Bearing #: SB205-16
• Housing #: PF205G
• Weight: 0.75 LBS
