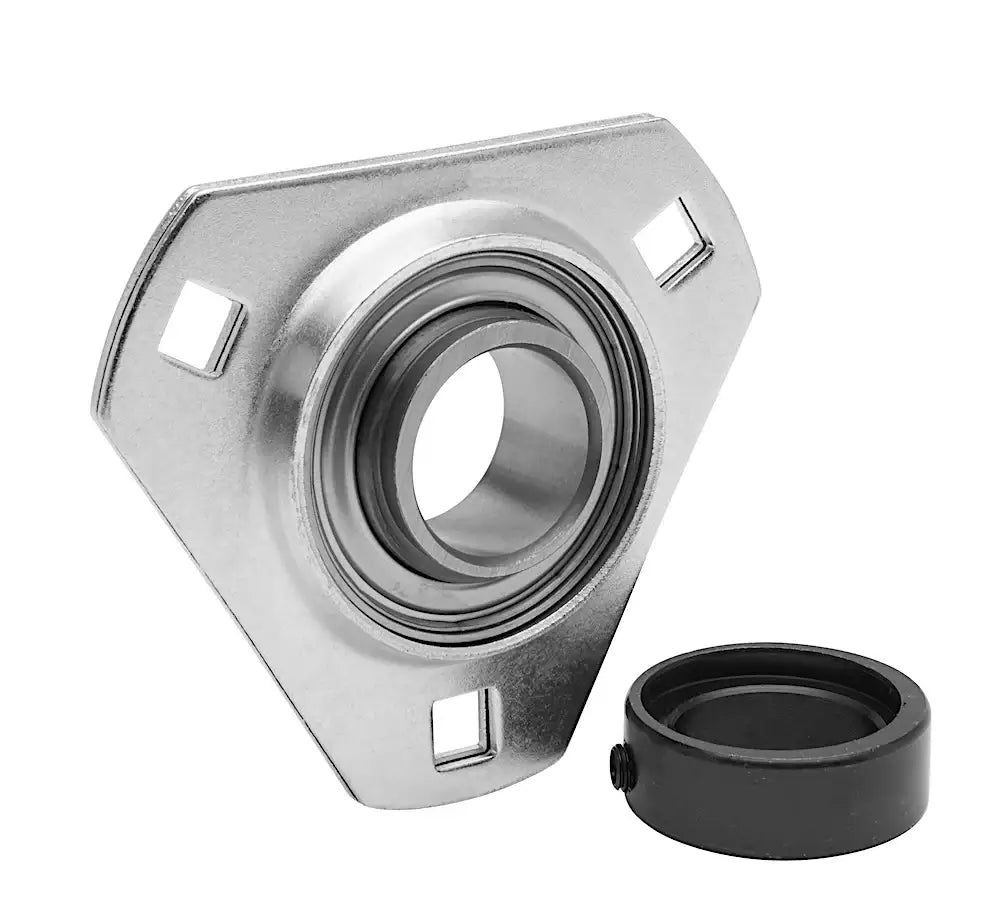

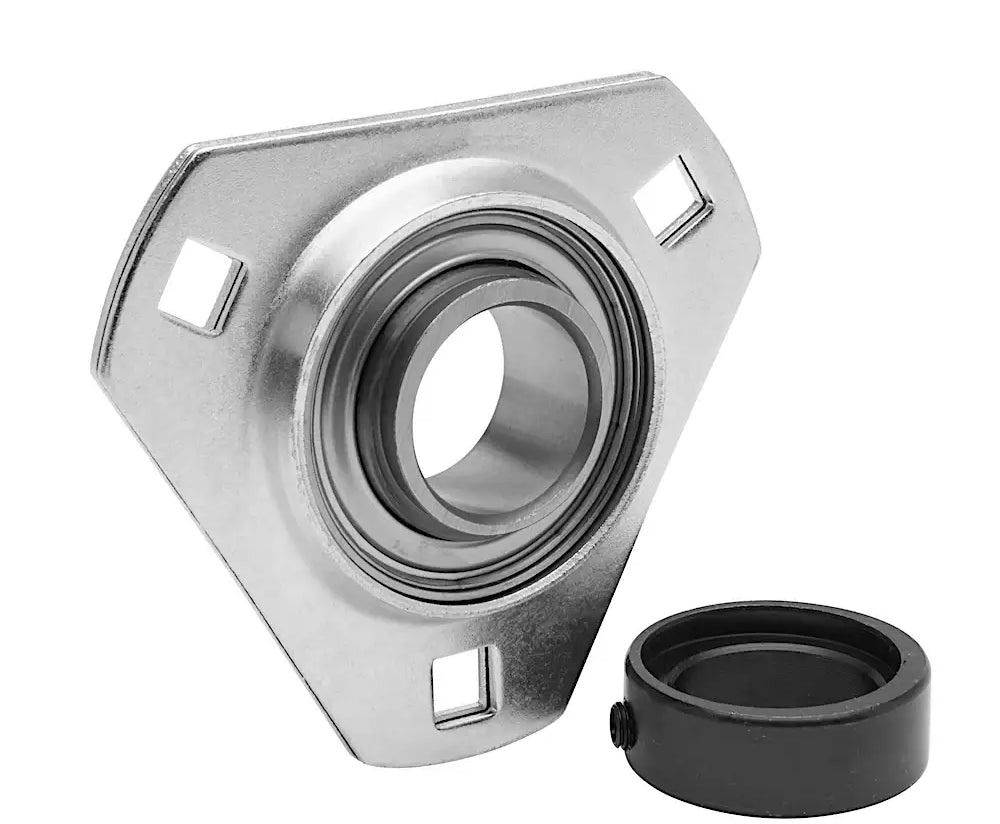

SAPFT207-22 Stamped Steel 3-Bolt Flange Bearing | 1-3/8" Bearing
SAPFT207-22 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-3/8" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT207-22 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT207-22 1-3/8" bearing has incredible holding power and stability. Additionally, our SAPFT207-22 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT207-22 bearing, contact our customer support team, and we will be happy to assist you!
SAPFT207-22 Bearing Dimensions

- Part #: SAPFT207-22
- Bearing I.D: 1-3/8"
- Dimension (a): 4-11/16"
- Dimension (e): 3-15/16"
- Dimension (h): 1-3/4"
- Dimension (s): 13/32"
- Dimension (c): 3/4"
- Dimension (g): 7/64"
- Dimension (b): 1-1/4"
- Dimension (f): 3-3/16"
- Dimension (L): 1.531"
- Dimension (n): 0.335"
- Dimension (W): 2-3/16"
- Bolt Size: 3/16"
- Insert Bearing #: SA207-22
- Housing #: PFT207
- Weight: 1.54 LBS
- Part #: SAPFT207-22
- Bearing I.D: 1-3/8"
- Dimension (a): 4-11/16"
- Dimension (e): 3-15/16"
- Dimension (h): 1-3/4"
- Dimension (s): 13/32"
- Dimension (c): 3/4"
- Dimension (g): 7/64"
- Dimension (b): 1-1/4"
- Dimension (f): 3-3/16"
- Dimension (L): 1.531"
- Dimension (n): 0.335"
- Dimension (W): 2-3/16"
- Bolt Size: 3/16"
- Insert Bearing #: SA207-22
- Housing #: PFT207
- Weight: 1.54 LBS
