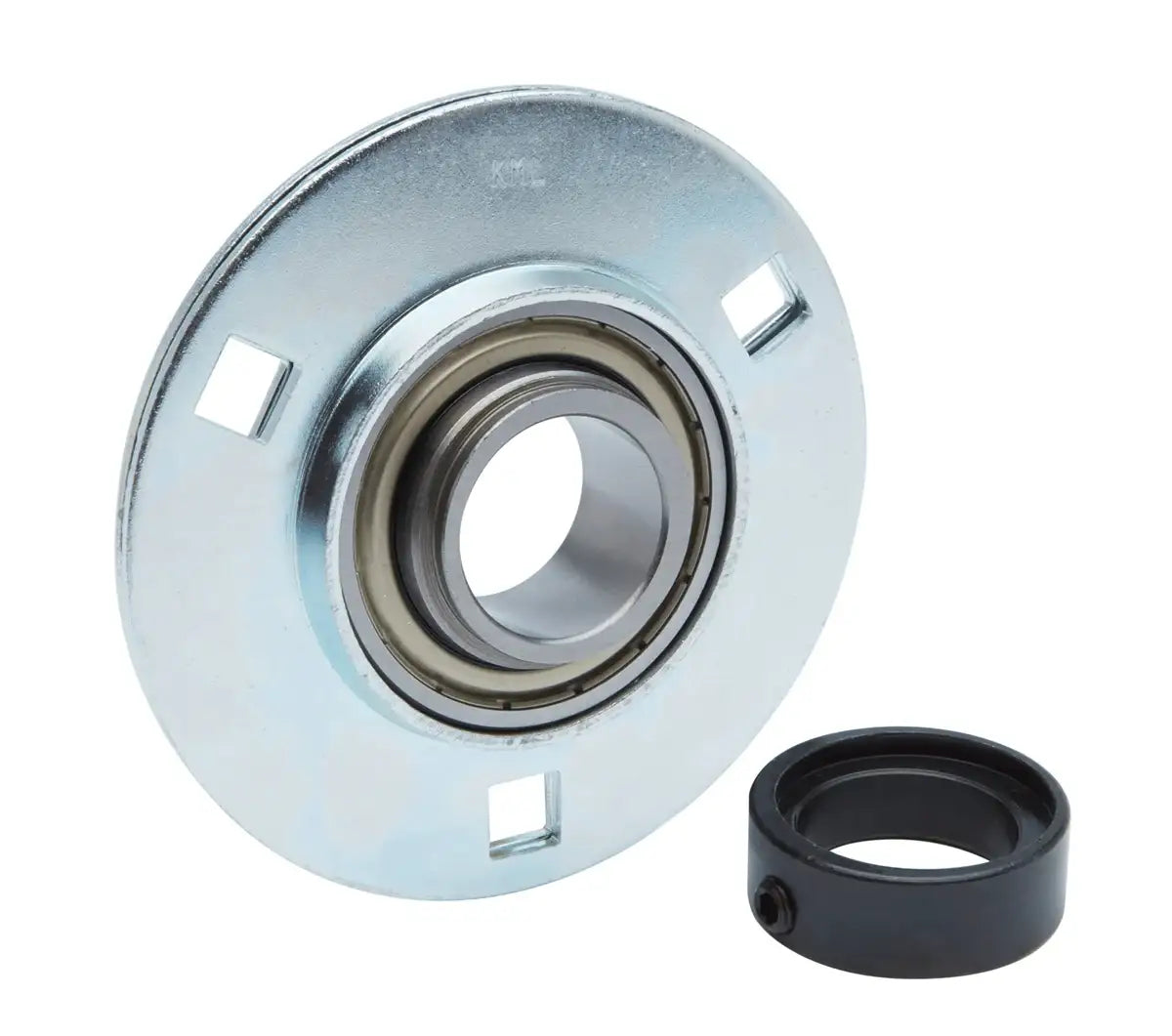

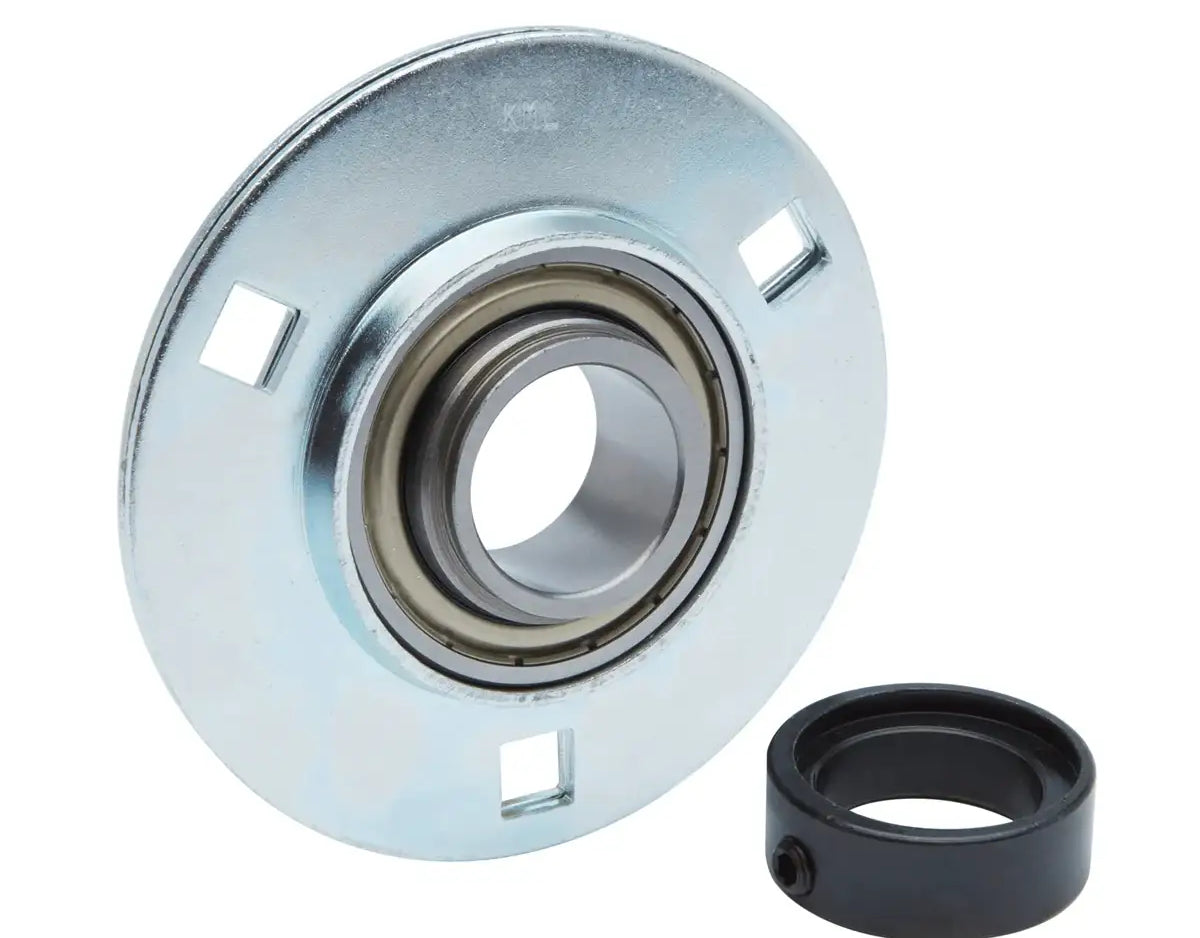

SAPF207-21 Stamped Steel 3-Bolt Flange Bearing | 1-5/16" Bearing

SAPF207-21 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-5/16" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF207-21 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF207-21 1-5/16" bearing has incredible holding power and stability. Additionally, our SAPF207-21 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF207-21 bearing, contact our customer support team, and we will be happy to assist you!

SAPF207-21 Bearing Dimensions

• Part #: SAPF207-21
• Bearing ID: 1-5/16"
• Dimension (a): 4-13/16"
• Dimension (e): 3-15/16"
• Dimension (g): 7/64"
• Dimension (c): 3/4"
• Dimension (s): 13/32"
• Dimension (f): 3-3/16"
• Dimension (L): 1.531"
• Dimension (n): 0.335"
• Dimension (W): 2-15/64"
• Bolt Size: 3/8"
• Number of Bolt Holes: 3
• Insert Bearing #: SA207-21
• Housing #: PF207
• Weight: 1.85 LBS
