PFT206 Stamped Steel 3-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$11.55
SKU: 5652-PFT206-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFT206 Stamped Steel 3-Bolt Flange Bearing Housing Features
PFT206 Stamped Steel 3-Bolt Flange Bearing Housing Specifications

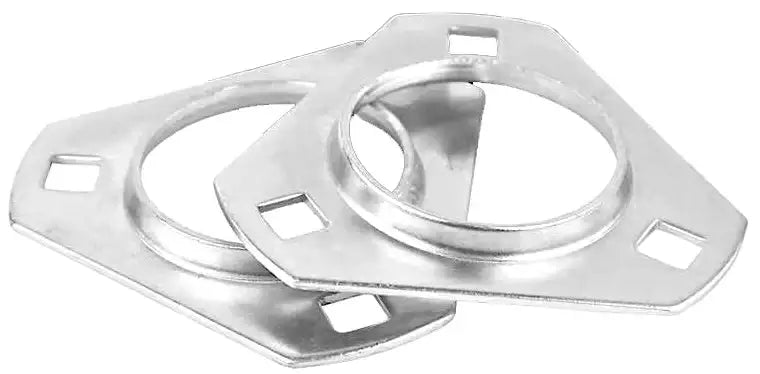

PFT206 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt triangle flange bearing housing. Our PFT206 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFT206 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFT206 housings, contact our customer support team, and we will be happy to assist you!
PFT206 Housing Dimensions
- Housing Part #: PFT206
- For Bearing IDs: 1-1/16", 1-1/8", 1-3/16", 1-1/4"
- Dimension (A): 3-11/16"
- Dimension (B): 1-1/2"
- Dimension (C): 1"
- Dimension (D): 13/32" (+/-0.005")
- Dimension (E): 3-9/16"
- Dimension (F): 11/32"
- Dimension (G): 0.104"
- Dimension (H): 62mm
- Min. Frame Opening: 2-13/16"
- Housing Part #: PFT206
- For Bearing IDs: 1-1/16", 1-1/8", 1-3/16", 1-1/4"
- Dimension (A): 3-11/16"
- Dimension (B): 1-1/2"
- Dimension (C): 1"
- Dimension (D): 13/32" (+/-0.005")
- Dimension (E): 3-9/16"
- Dimension (F): 11/32"
- Dimension (G): 0.104"
- Dimension (H): 62mm
- Min. Frame Opening: 2-13/16"
