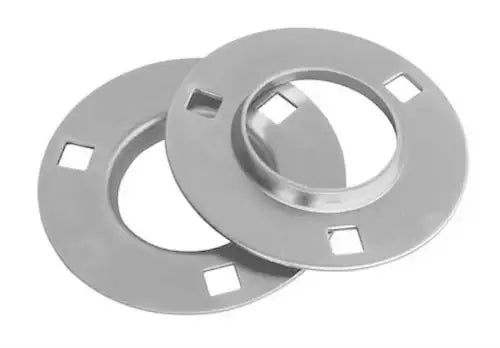

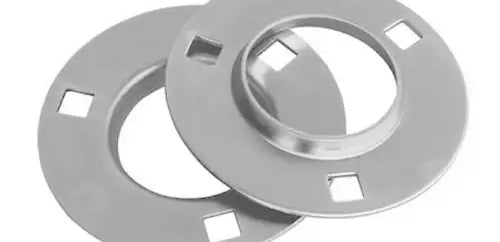

PF206 Stamped Steel 3-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$12.54
SKU: 5652-PF206-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF206 Stamped Steel 3-Bolt Flange Bearing Housing Features
PF206 Stamped Steel 3-Bolt Flange Bearing Housing Specifications
PF206 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt flange bearing housing. Our PF206 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF206 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF206 housings, contact our customer support team, and we will be happy to assist you!
PF206 Housing Dimensions
- Part #: PF206
- For Shaft Diameters: 1-1/16", 1-1/8", 1-3/16", 1-1/4"
- Min. Frame Opening (A): 2-13/16"
- Flange Dia. (B): 4-7/16"
- Flange Shoulder Width (C): 11/16"
- Stock Thickness (G): 0.104"
- Bolt Size: 3/8
- Bolt Hole Circle Dia. (D): 3-9/16"
- Hole Width: 13/32"
- Fafnir Part #: 62MS
- SKF Part #: F-62
- MRC Part #: 62MS-3
- New Departure Part #: FL62
- Part #: PF206
- For Shaft Diameters: 1-1/16", 1-1/8", 1-3/16", 1-1/4"
- Min. Frame Opening (A): 2-13/16"
- Flange Dia. (B): 4-7/16"
- Flange Shoulder Width (C): 11/16"
- Stock Thickness (G): 0.104"
- Bolt Size: 3/8
- Bolt Hole Circle Dia. (D): 3-9/16"
- Hole Width: 13/32"
- Fafnir Part #: 62MS
- SKF Part #: F-62
- MRC Part #: 62MS-3
- New Departure Part #: FL62
