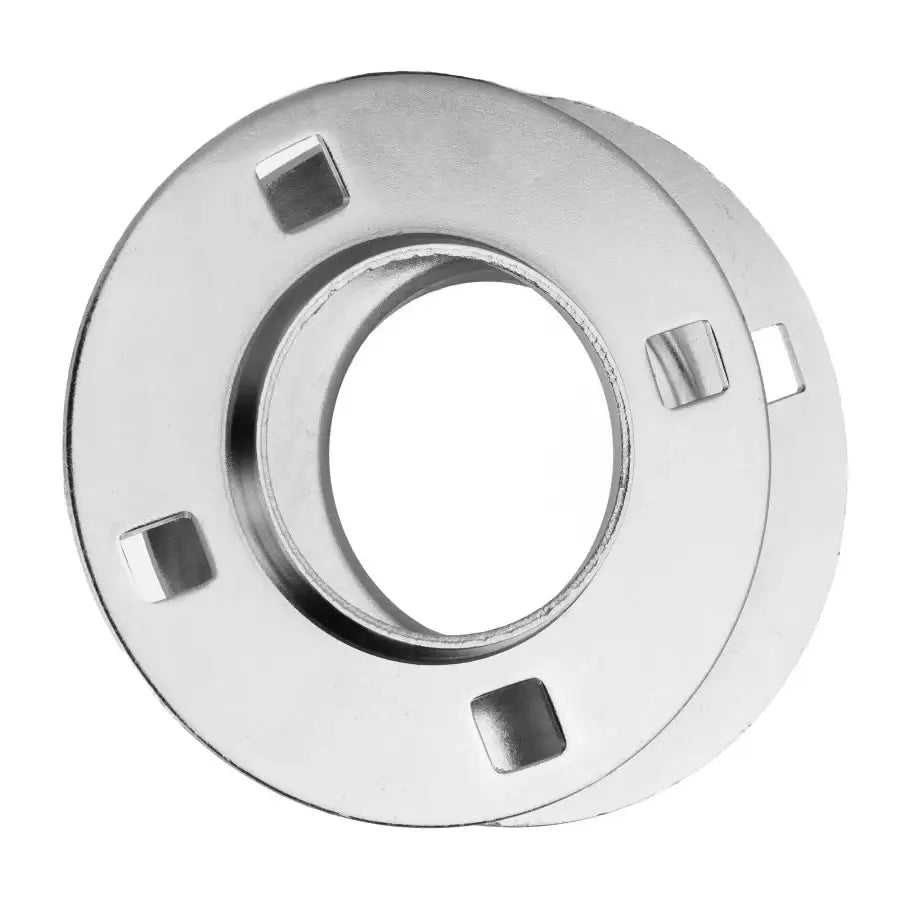

PF208 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 4-bolt flange bearing housing. Our PF208 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF208 flange bearing housing that will impress. Four-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF208 housings, contact our customer support team, and we will be happy to assist you!
PF208 Housing Dimensions
- Part #: PF208
- For Shaft Diameters: 1-1/2", 1-9/16"
- Min. Frame Opening (A): 3-9/16"
- Flange Dia. (B): 5-13/16"
- Flange Shoulder Width (C): 13/16"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-11/16"
- Hole Width: 17/32"
- Fafnir Part #: 80MS
- SKF Part #: F-80
- MRC Part #: 80MS
- New Departure Part #: FL-80
Feature
- Precision Stamped Steel
- Zinc Plated Housing
- Hassle-Free Assembly
- Interchanges With Other Brands
- Part #: PF208
- For Shaft Diameters: 1-1/2", 1-9/16"
- Min. Frame Opening (A): 3-9/16"
- Flange Dia. (B): 5-13/16"
- Flange Shoulder Width (C): 13/16"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-11/16"
- Hole Width: 17/32"
- Fafnir Part #: 80MS
- SKF Part #: F-80
- MRC Part #: 80MS
- New Departure Part #: FL-80
