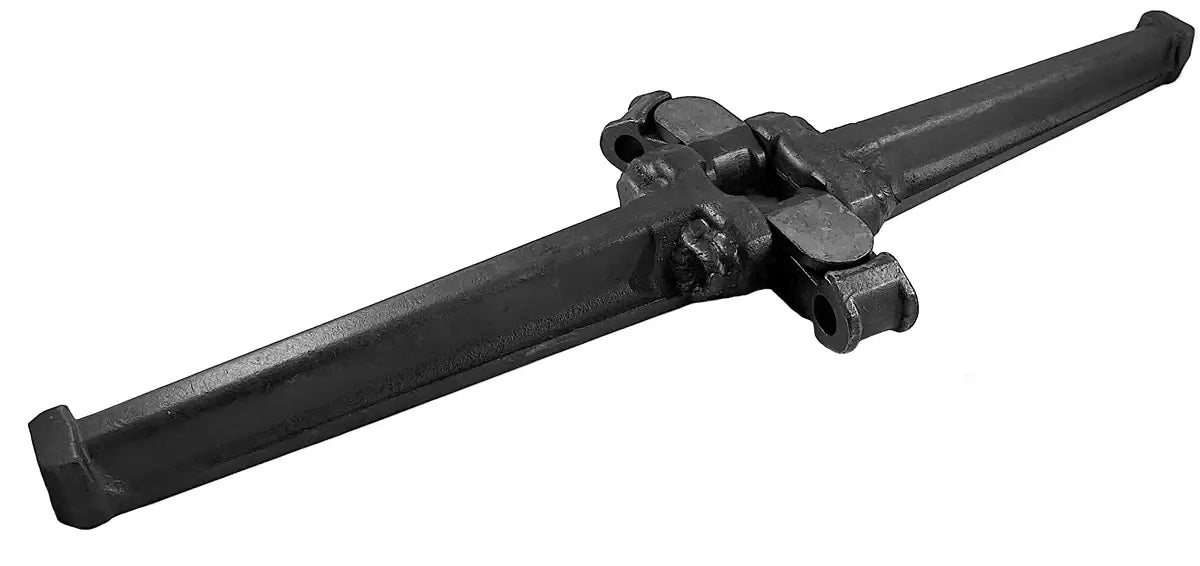

525-1CCBP Cardan Chain | 525-1CCBP Biplaner Chain

525-1CCBP chain is considered a cardan chain or biplaner chain. The unique design creates a highly effective chain conveyor capable of high loads and moving highly abrasive materials. This Engineer-class chain utilizes special u-joints with a cast flight attachment that gives the attachment the ability to swivel and the chain the ability to swivel (if needed). Our cardan/ biplaner chains are manufactured from some of the highest quality raw materials and precision formed for superior performance, working life, and strength. Each component has specific heat-treat and wear characteristics to withstand one of the earth's most demanding and harshest applications. Typical applications for the 525-1CCBP mining chain are; multi-directional, continuous mining equipment and tunneling machines. For additional information or to get a quote on 525-1CCBP chains or sprockets, contact our customer service team, and we will be happy to assist you!

525-1CCBP Chain Dimensions

• Part #: 525-1CCBP
• Dimension (P + P1): 5.250"
• Dimension (P): 2.625"
• Dimension (P1): 2.625"
• Dimension (LX): 23.50"
