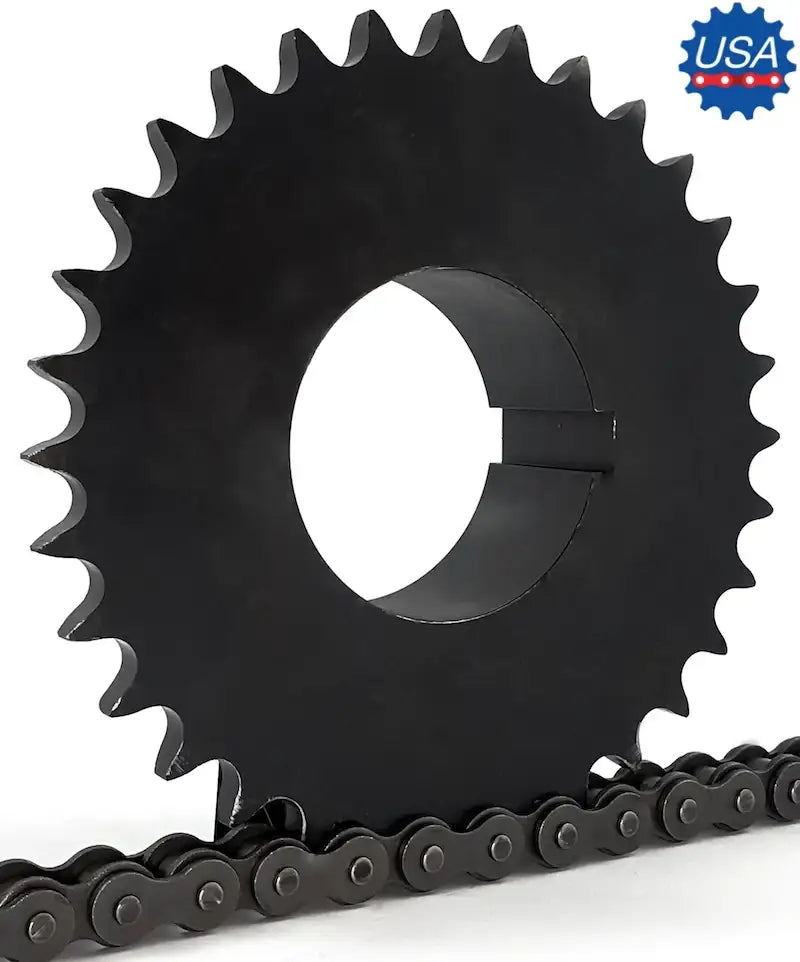

50P35 Sprocket (Taper Bushed)

Name: 50P35 Sprocket (Taper Bushed)
Brand: USA ROLLER CHAIN
SKU: 50P35-SPROCKET
Price: 122.99 USD
Availability: InStock

Note: Contact Us For Large Quantity Request

$122.99

SKU: 50P35-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

50P35 Sprocket (Taper Bushed) Description/Features

50P35 Sprocket (Taper Bushed) Specifications

This 50P35 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a P1 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage, and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 50P35 sprockets are made to accept a P1 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50P35 Taper Bushed Sprocket Dimensions

Sprocket Size: 50P35
Tooth Count: 35
Bushing Type: P1
Outside Diameter: 7.320"
Pitch Diameter: 6.972"
Dimension (OL): 2-3/16"
Dimension (L): 1-15/16"
Dimension (H): 3"
Dimension (P): 1-19/32"
Dimension (T): 0.343"
Sprocket Weight: 4.3 LBS
Bushing Weight: 1.3 LBS
