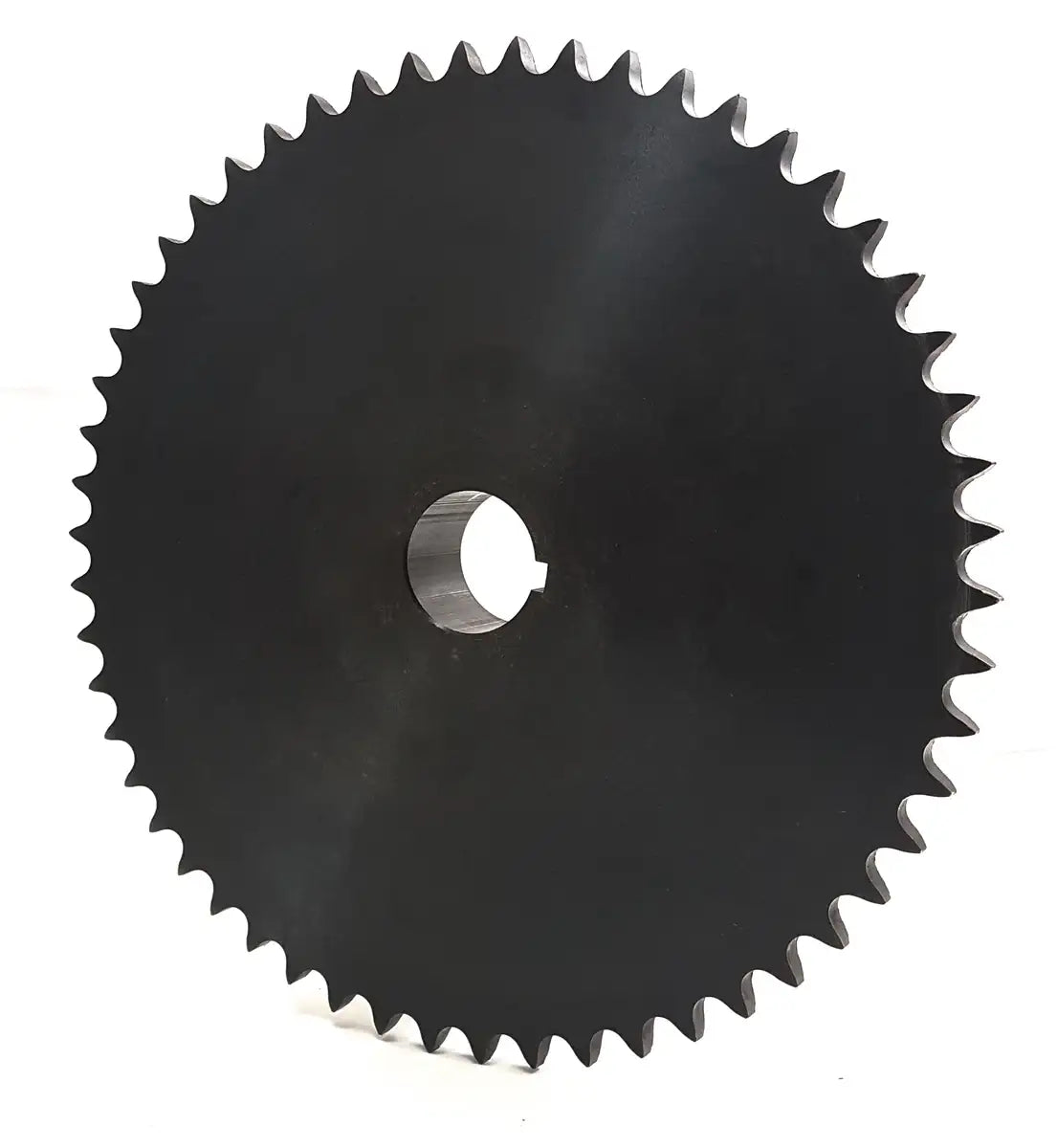

50BS60 Sprocket With 1-7/16" Finished Bore

Name: 50BS60 Sprocket With 1-7/16" Finished Bore
Brand: USA ROLLER CHAIN
SKU: 50BS60-1-716-SPROCKET
Price: 160.99 USD
Availability: InStock

Note: Contact Us For Large Quantity Request

$160.99

SKU: 50BS60-1-716-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

50BS60 Sprocket With 1-7/16" Finished Bore Description/Features

50BS60 Sprocket With 1-7/16" Finished Bore Specifications

This 50BS60 sprocket features a 1-7/16" finished bore including a key-way and two setscrews. It is a durable, high quality, and precision sprocket that fully meets all ANSI Standards which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of ANSI #50 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.

50BS60 1 7/16" Finished Bore Sprocket Dimensions

Sprocket Size: 50BS60
Tooth Count: 60
Outside Diameter: 12.300"
Hub Type: B
Bore Size: 1-7/16"
Keyway Size: 3/8" X 3/16"
Hub Diameter: 3-3/4"
Length Thru Bore: 1-1/4"
Sprocket Weight: 13.0 LBS
Common Interchanges: 50BS60H, H50BS60, 50BS60-FB
