50P32 Sprocket (Taper Bushed)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 P Type Sprockets

50P32 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$92.99
SKU: 50P32-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714641199471" , "metafield_value":""}]
50P32 Sprocket (Taper Bushed) Features
50P32 Sprocket (Taper Bushed) Specifications

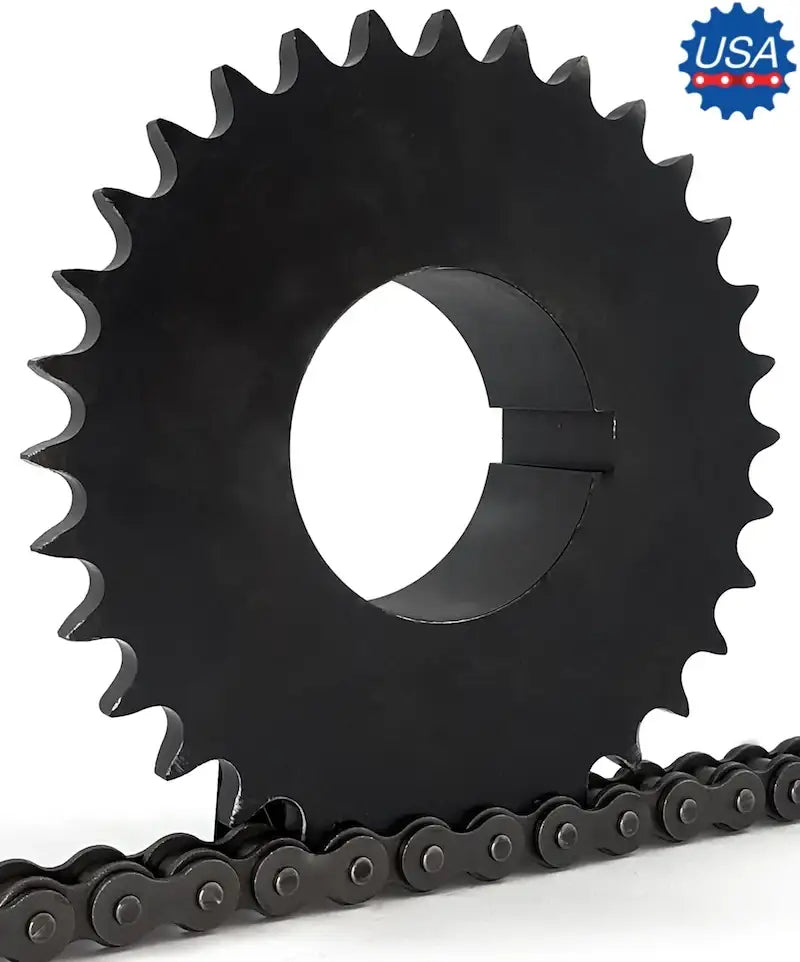

This 50P32 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a P1 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage, and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 50P32 sprockets are made to accept a P1 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50P32 Taper Bushed Sprocket Dimensions

50P32 Sprocket (Taper Bushed)
  • Sprocket Size: 50P32
  • Tooth Count: 32
  • Bushing Type: P1
  • Outside Diameter: 6.720"
  • Pitch Diameter: 6.376"
  • Dimension (OL): 2-3/16"
  • Dimension (L): 1-15/16"
  • Dimension (H): 3"
  • Dimension (P): 1-19/32"
  • Dimension (T): 0.343"
  • Sprocket Weight: 3.9 LBS
  • Bushing Weight: 1.3 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 50P32
  • Tooth Count: 32
  • Bushing Type: P1
  • Outside Diameter: 6.720"
  • Pitch Diameter: 6.376"
  • Dimension (OL): 2-3/16"
  • Dimension (L): 1-15/16"
  • Dimension (H): 3"
  • Dimension (P): 1-19/32"
  • Dimension (T): 0.343"
  • Sprocket Weight: 3.9 LBS
  • Bushing Weight: 1.3 LBS
