50P24H Sprocket (Taper Bushed)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 P Type Sprockets

50P24H Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$55.99
SKU: 50P24H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714641789295" , "metafield_value":""}]
50P24H Sprocket (Taper Bushed) Features
50P24H Sprocket (Taper Bushed) Specifications

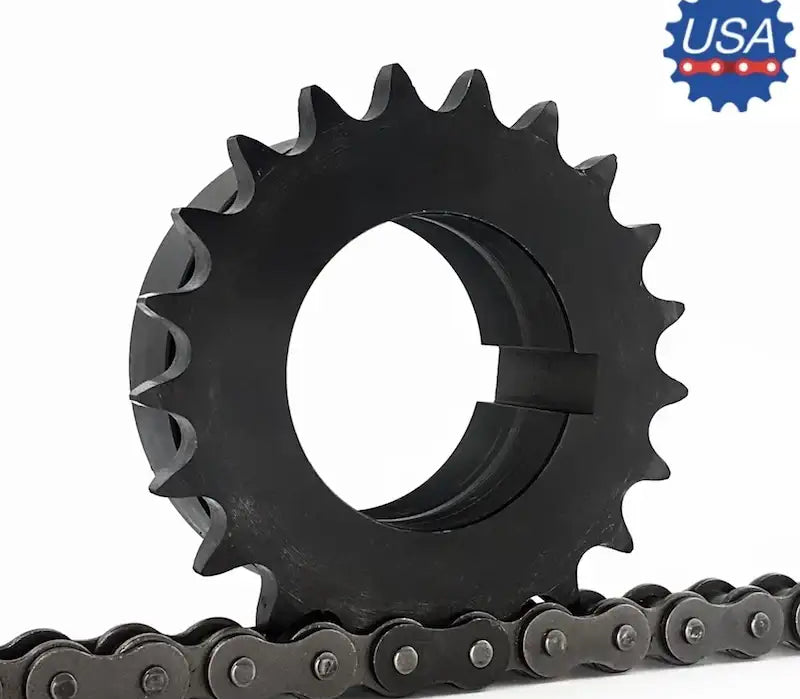

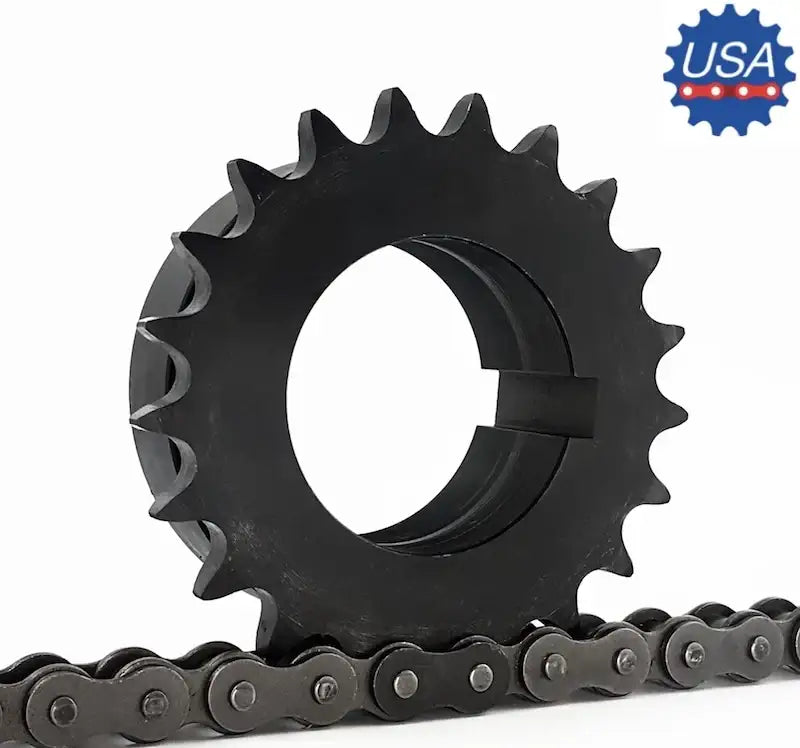

This 50P24H sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a P1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 50P24H sprockets are bored to accept a P1 type taper bushing, which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50P24H Taper Bushed Sprocket Dimensions

50P24H Sprocket (Taper Bushed)
  • Sprocket Size: 50P24H
  • Tooth Count: 24
  • Bushing Type: P1
  • Outside Diameter: 5.120"
  • Pitch Diameter: 4.788"
  • Dimension (OL): 2-3/16"
  • Dimension (L): 1-15/16"
  • Dimension (H): 3"
  • Dimension (P): 1-19/32"
  • Dimension (T): 0.343"
  • Sprocket Weight: 2.6 LBS
  • Bushing Weight: 1.3 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 50P24H
  • Tooth Count: 24
  • Bushing Type: P1
  • Outside Diameter: 5.120"
  • Pitch Diameter: 4.788"
  • Dimension (OL): 2-3/16"
  • Dimension (L): 1-15/16"
  • Dimension (H): 3"
  • Dimension (P): 1-19/32"
  • Dimension (T): 0.343"
  • Sprocket Weight: 2.6 LBS
  • Bushing Weight: 1.3 LBS
