Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 BTB Type Sprockets

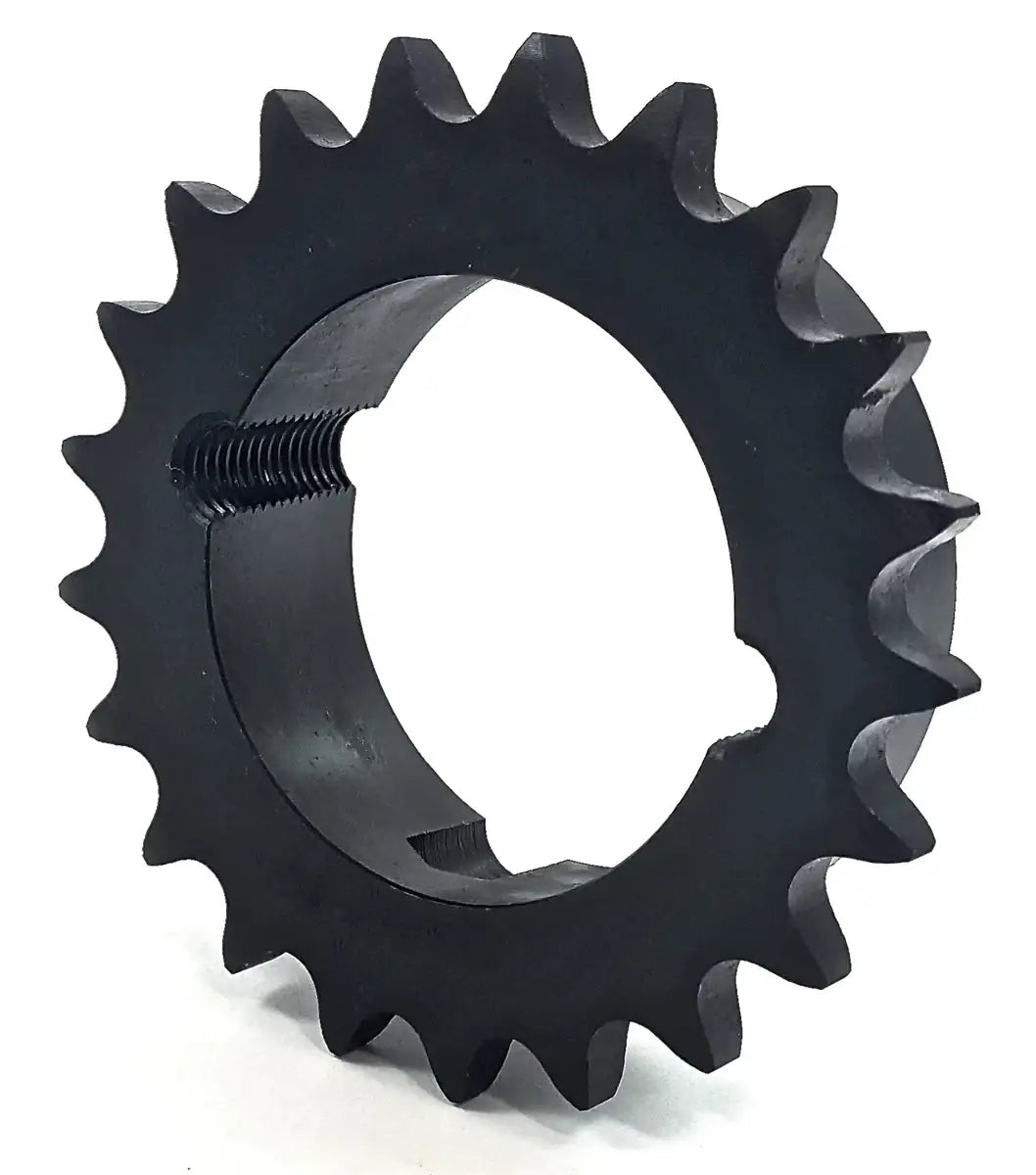

50BTB20 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
$39.99
SKU: 50BTB20-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
50BTB20 Sprocket (Taper Bushed) Features
50BTB20 Sprocket (Taper Bushed) Specifications
This 50BTB20 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a 1610 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 50BTB20 sprockets are manufactured to accept a 1610 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
50BTB20 Taper Bushed Sprocket Dimensions
- Sprocket Size: 50BTB20
- Bushing Size: 1610
- Tooth Count: 20
- Outside Diameter: 4.321"
- Pitch Diameter: 3.995"
- Dimension (L): 1"
- Dimension (C): 3-1/4"
- Sprocket Type: B
- Sprocket Weight: 1.6 LBS
- Bushing Weight: 0.9 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Sprocket Size: 50BTB20
- Bushing Size: 1610
- Tooth Count: 20
- Outside Diameter: 4.321"
- Pitch Diameter: 3.995"
- Dimension (L): 1"
- Dimension (C): 3-1/4"
- Sprocket Type: B
- Sprocket Weight: 1.6 LBS
- Bushing Weight: 0.9 LBS
