50B16SS Stainless Steel Sprocket
SKU: 50B16SS-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
50B16SS Stainless Steel Sprocket Description/Features
50B16SS Stainless Steel Sprocket Specifications

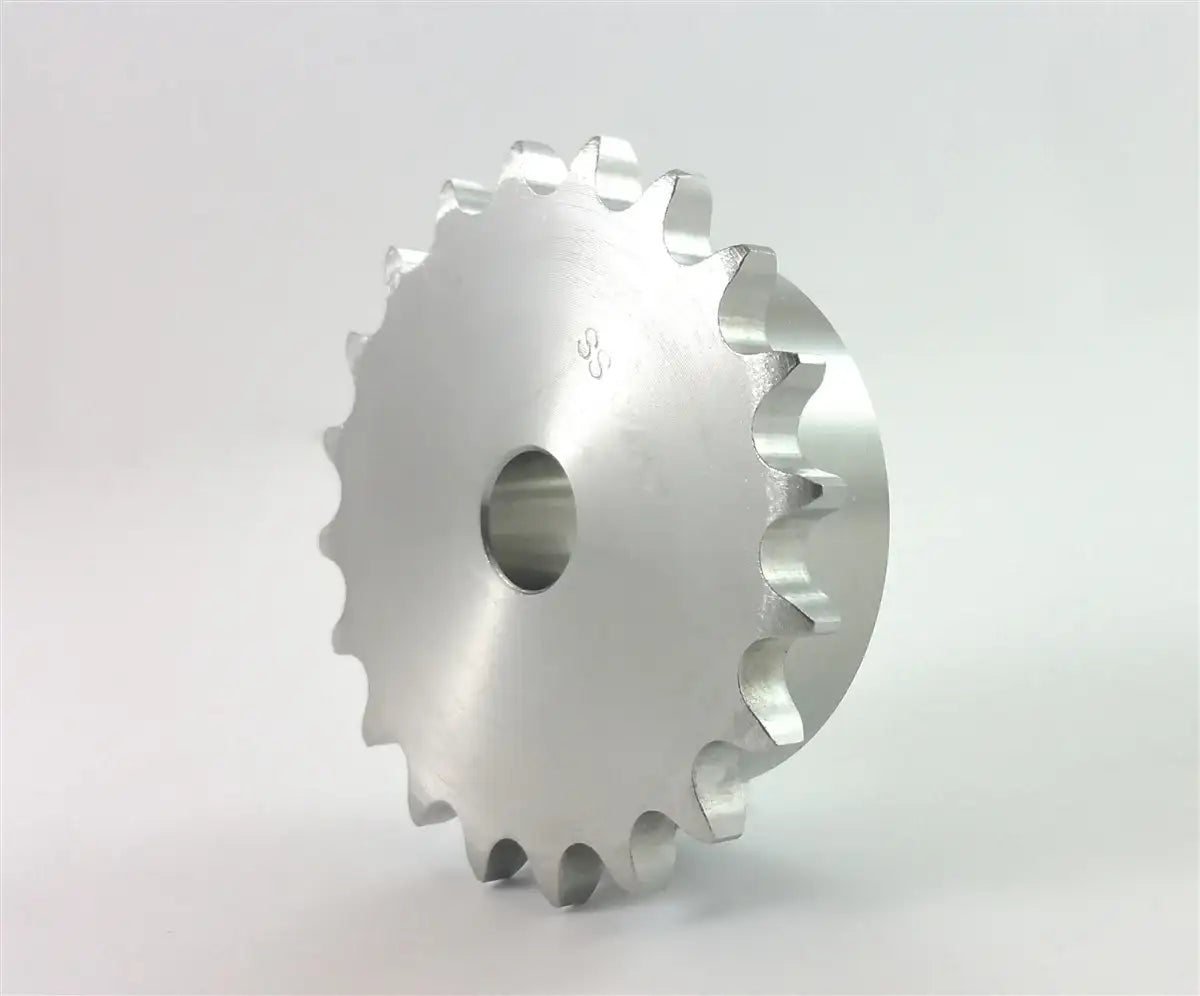

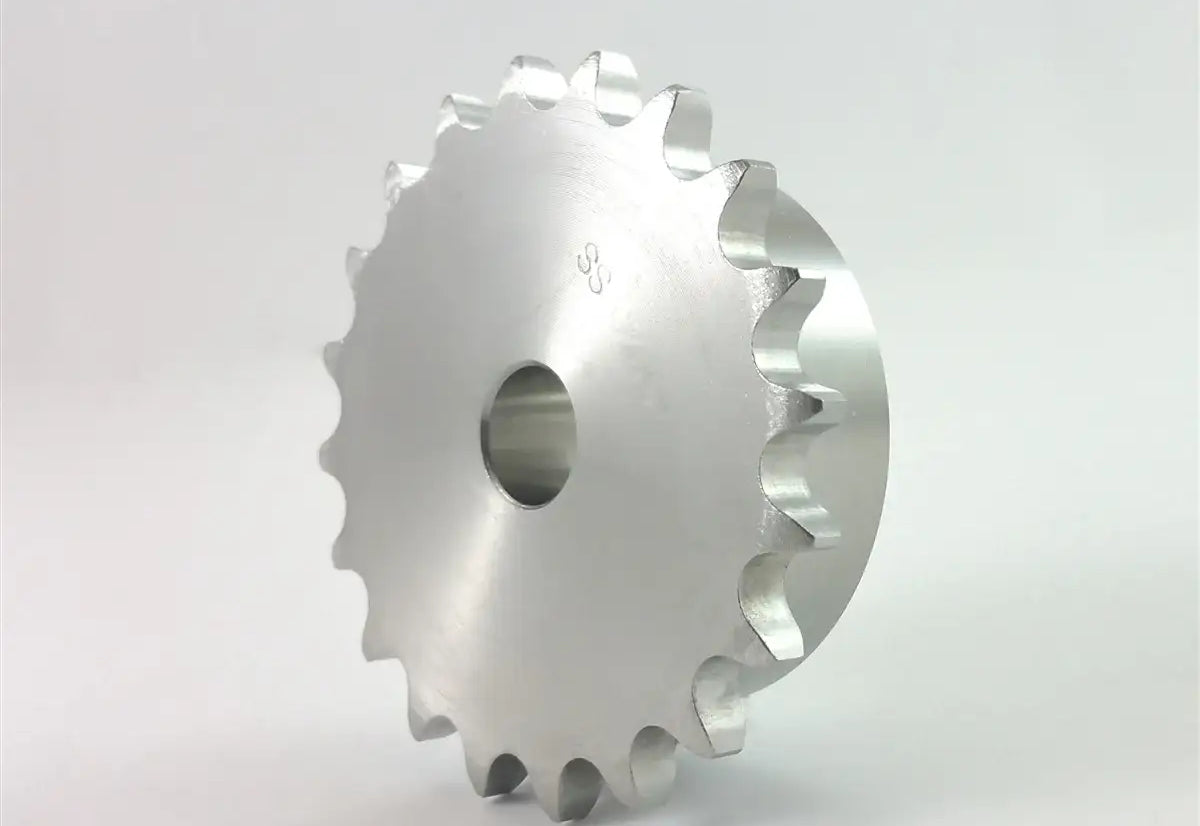

This 50B16SS stainless steel sprocket is manufactured to ANSI specifications and is constructed out of 304-grade stainless steel for corrosion resistance, strength, durability, and to be able to work in low to high temperatures. This sprocket has 16 teeth, a B-Hub (hub on one side), and has a 5/8" stock bore. We can supply these sprockets bored to size if needed and as A-Plate Style or even C-Hub (hub on both sides) style. We offer some of the best pricing in the industry without sacrificing quality! For pricing and availability please contact us and we will be happy to assist you.
50B16 Stainless Steel Sprocket Dimensions
- Number Of Teeth: 16
- Outside Diameter: 3.52"
- Stock Bore Size: 5/8"
- Maximum Bore size: 1-3/4"
- Hub Diameter: 2-1/2"
- Length Through Bore: 1"
- Sprocket Weight: 1.5lbs
Phone: (407) 347-3519
Email:
- Number Of Teeth: 16
- Outside Diameter: 3.52"
- Stock Bore Size: 5/8"
- Maximum Bore size: 1-3/4"
- Hub Diameter: 2-1/2"
- Length Through Bore: 1"
- Sprocket Weight: 1.5lbs
