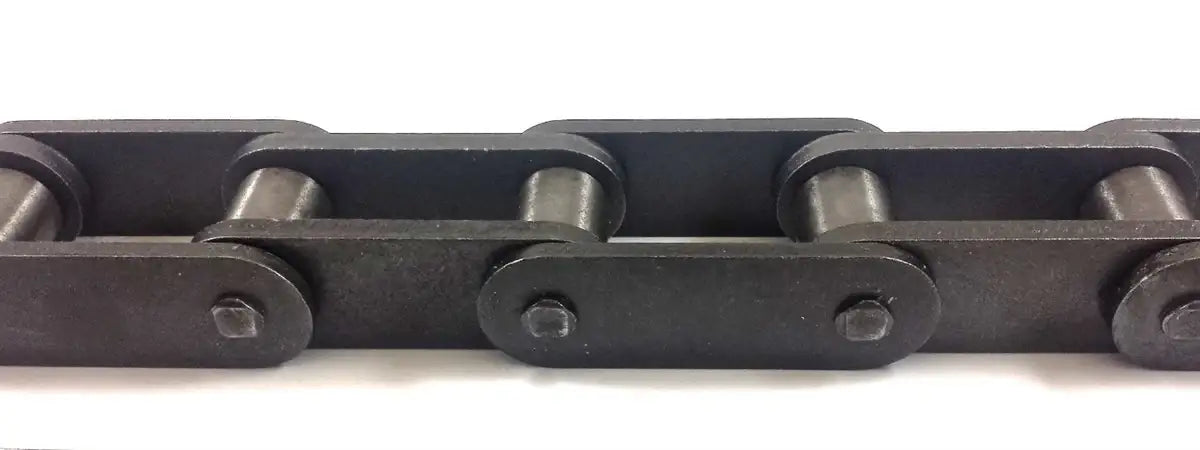

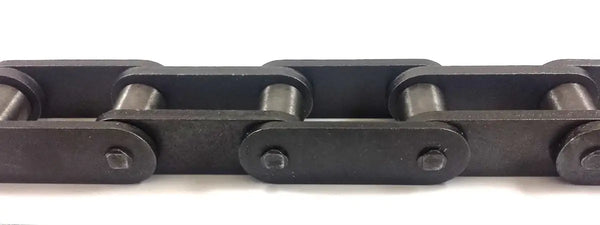

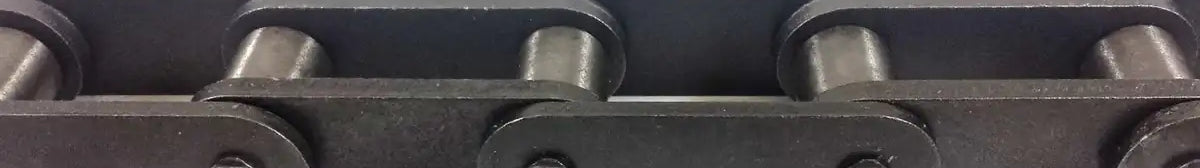

5042 Chain

5042 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 5042-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
5042 Straight Sidebar Drive Chain Connecting (Master) Link
5042 Straight Sidebar Drive Chain Connecting (Master) Link
Login
5042 Pin
5042 Pin
Login
View full details
Description
Specification
This 5042 chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on 5042 chain! 5042 chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. 5042 can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality 5042 chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on 5042 straight sidebar drive chain or sprockets please contact us.

Dimensions:
5042 Chain
  • Chain #: 5042
  • Pitch: 5.000"
  • Pin Length (F): 7.350"
  • Inside Width (E): 3.000"
  • Pin Diameter (G): 1.500"
  • Pin Style: K / Fully Round
  • Pin Material: Heat Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 3.000"
  • Roller Material: Heat Treated Alloy Steel
  • Sidebar Height (H): 4.000"
  • Sidebar Thickness (T): 0.750"
  • Sidebar Material: Heat Treated Alloy Steel
  • Bushing Diameter: 2.000"
  • Bushing Material: Heat Treated Alloy Steel
  • Average Ultimate Strength: 420,000 LBS
  • Maximum Working Load: 23,600 LBS
  • Weight Per Foot: 53.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Drive Chain
  • Straight Sidebar Style
  • Extremely High Strength
  • Durable
Featured image
  • Chain #: 5042
  • Pitch: 5.000"
  • Pin Length (F): 7.350"
  • Inside Width (E): 3.000"
  • Pin Diameter (G): 1.500"
  • Pin Style: K / Fully Round
  • Pin Material: Heat Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 3.000"
  • Roller Material: Heat Treated Alloy Steel
  • Sidebar Height (H): 4.000"
  • Sidebar Thickness (T): 0.750"
  • Sidebar Material: Heat Treated Alloy Steel
  • Bushing Diameter: 2.000"
  • Bushing Material: Heat Treated Alloy Steel
  • Average Ultimate Strength: 420,000 LBS
  • Maximum Working Load: 23,600 LBS
  • Weight Per Foot: 53.0 LBS
