WS6121HHF Bucket Elevator Chain | Elevator Chain
SKU: 4947-EN-WS6121HHF-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
WS6121HHF Bucket Elevator Chain | Elevator Chain Description/Features
WS6121HHF Bucket Elevator Chain | Elevator Chain Specifications
WS6121HHF chain is a high-strength welded steel conveyor chain utilized in a variety of bucket elevator and conveyor applications around the world. Our WS6121HHF chain is made from premium-grade alloy steels that have undergone specific heat-treats to produce a chain with the maximum working life, the wear surfaces of the chain have been hardened to give it a maximum wear resistance. For additional information or to get a quote on the WS6121HHF chain contact our customer support team and we will be happy to assist you!

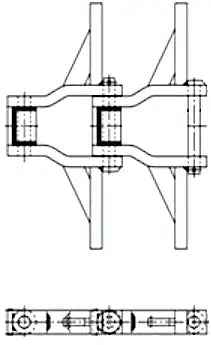

WS6121HHF Chain Dimensions
- Chain Size: WS6121HHF
- Pitch (A): 9.000"
- Inside Width (B): 3.625"
- Barrel Diameter (C): 2.500"
- Plate Height (D): 2.500"
- Plate Thickness (E/F): 1.125"
- Pin Diameter (G): 1.250"
- Pin Length (H): 9.875"
- Tensile Strength: 275,000 LBS
- Max. Recommended Working Load: 27,600 LBS
- Chain Size: WS6121HHF
- Pitch (A): 9.000"
- Inside Width (B): 3.625"
- Barrel Diameter (C): 2.500"
- Plate Height (D): 2.500"
- Plate Thickness (E/F): 1.125"
- Pin Diameter (G): 1.250"
- Pin Length (H): 9.875"
- Tensile Strength: 275,000 LBS
- Max. Recommended Working Load: 27,600 LBS
